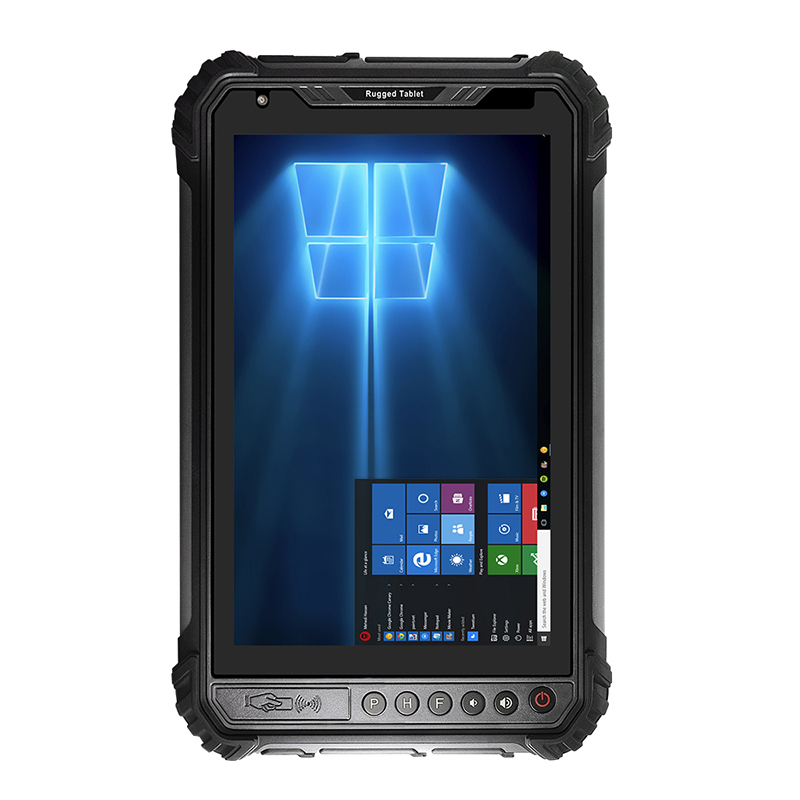

ST9-W Rugged Tablet Overview
The ST9-W Rugged Tablet is a durable, Windows-based device designed for tough environments, offering a balance of performance and functionality. Key features include:
- Operating System: Windows 10 Pro (Windows 10 Home/IoT optional)
- CPU: Intel Cherry Trail Z8350 Quad-Core, up to 1.92GHz
- GPU: Intel HD Graphics 400
- RAM/Storage: 4GB / 64GB
- Display:
- 8-inch IPS, 1200x1920 resolution, 400 nits max brightness
- 10-point touch, supports stylus
- Camera:
- Front: 2MP
- Rear: 5MP
- Battery: 7800mAh, 3.8V
- Charging time: 3.5 hours
- Usage time: 7.5 hours (50% volume, 60% brightness, playing local 1080P video)
- Connectivity:
- 4G LTE: TDD-LTE: B40, FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B28
- 3G WCDMA: B1/B2/B4/B5/B8
- GPS: BDS, GPS, GLONASS
- WiFi: 802.11 a/b/g/n/ac, dual-band (2.4G & 5G) – Intel Stone Peak 3165 module (WiFi/Bluetooth 2-in-1)
- Bluetooth: 4.2
- NFC: 13.56 MHz, 1-3cm range (ISO14443 Type A)
- Sensors: Light, acceleration, G-sensor
- Interfaces:
- HDMI x1
- SIM card slot x1
- RS232 x1 (mini-USB)
- Earphone jack x1
- DC 3.5*15mm x1
- USB-A: 3.0 x2, 2.0 x1
- Pogo pins: USB 2.0, charging, RS232
- Durability:
- IP65 dust and water resistance
- 1.2-meter drop resistance
- MIL-STD-810G certified
- Optional Features:
- 1D/2D Barcode scanner (NLS-N1, M1, SE2707)
- UHF RFID (American/European standards, external reading distance 3-5m)
- Fingerprint scanner (ZAZ-0A0, 1020A)
- High precision GPS (UM960)
- Accessories: Blue Box, DC Charger (5V 3A), wrist strap, screw
- Optional: Docking station, car holder, car docking
- Temperature:
- Storage: -25°C to 80°C
- Operation: -20°C to 55°C
The ST9-W is ideal for industrial and outdoor use, combining rugged durability with versatile connectivity and a range of optional features for enhanced functionality.
