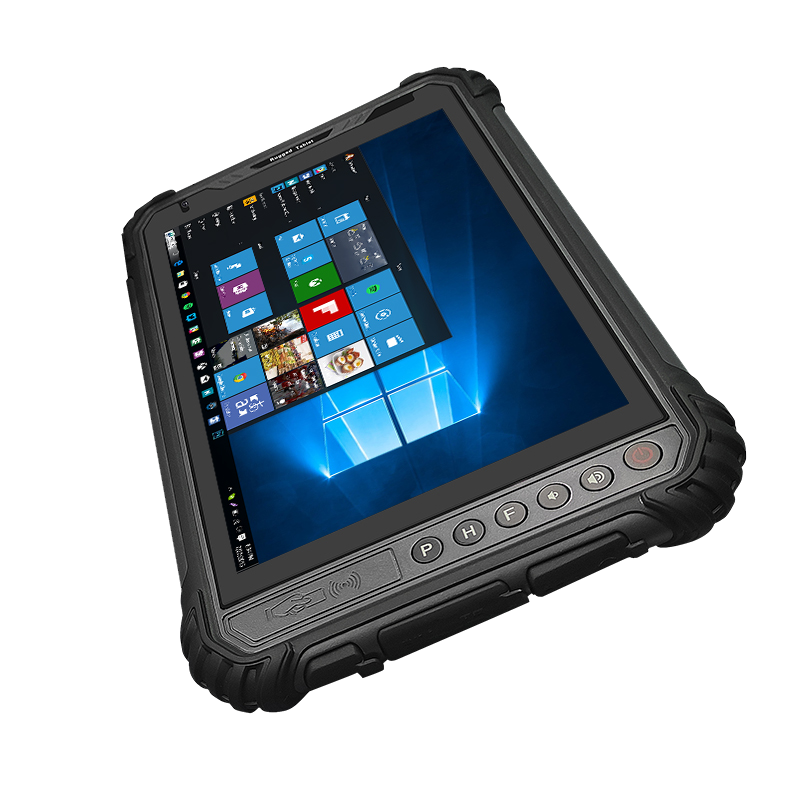

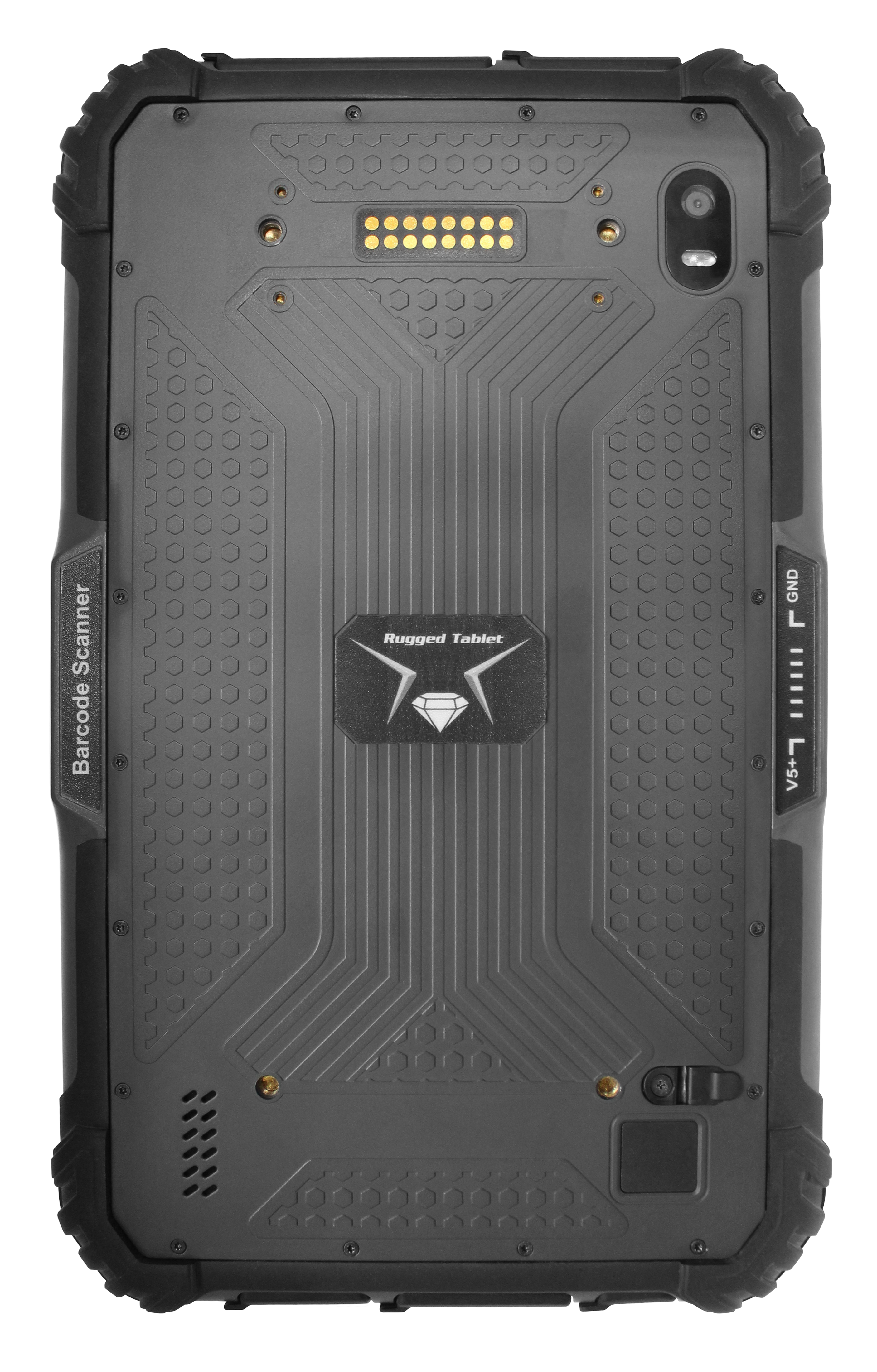

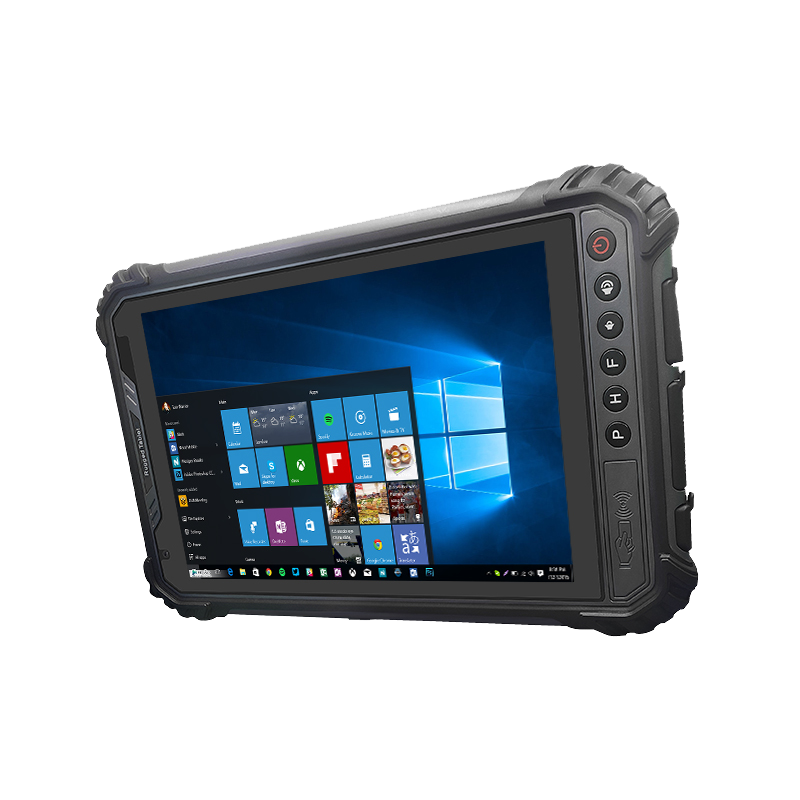

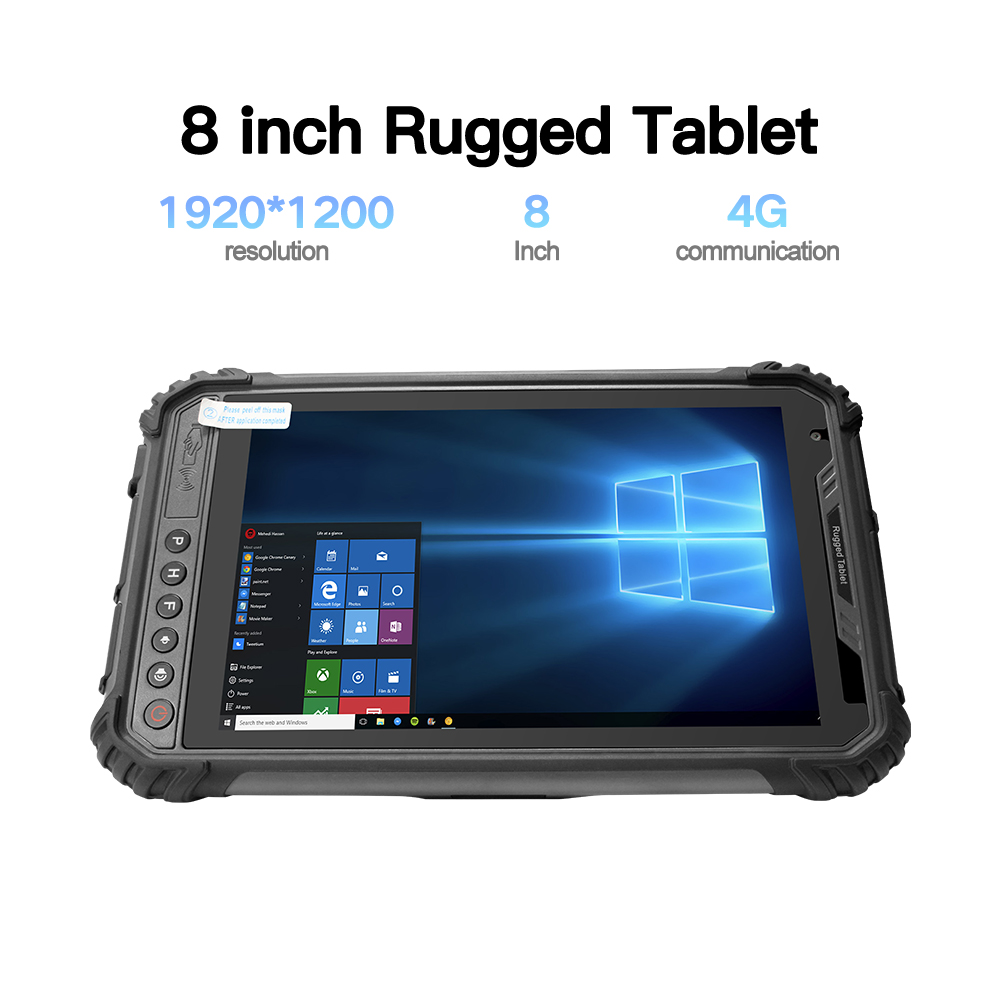

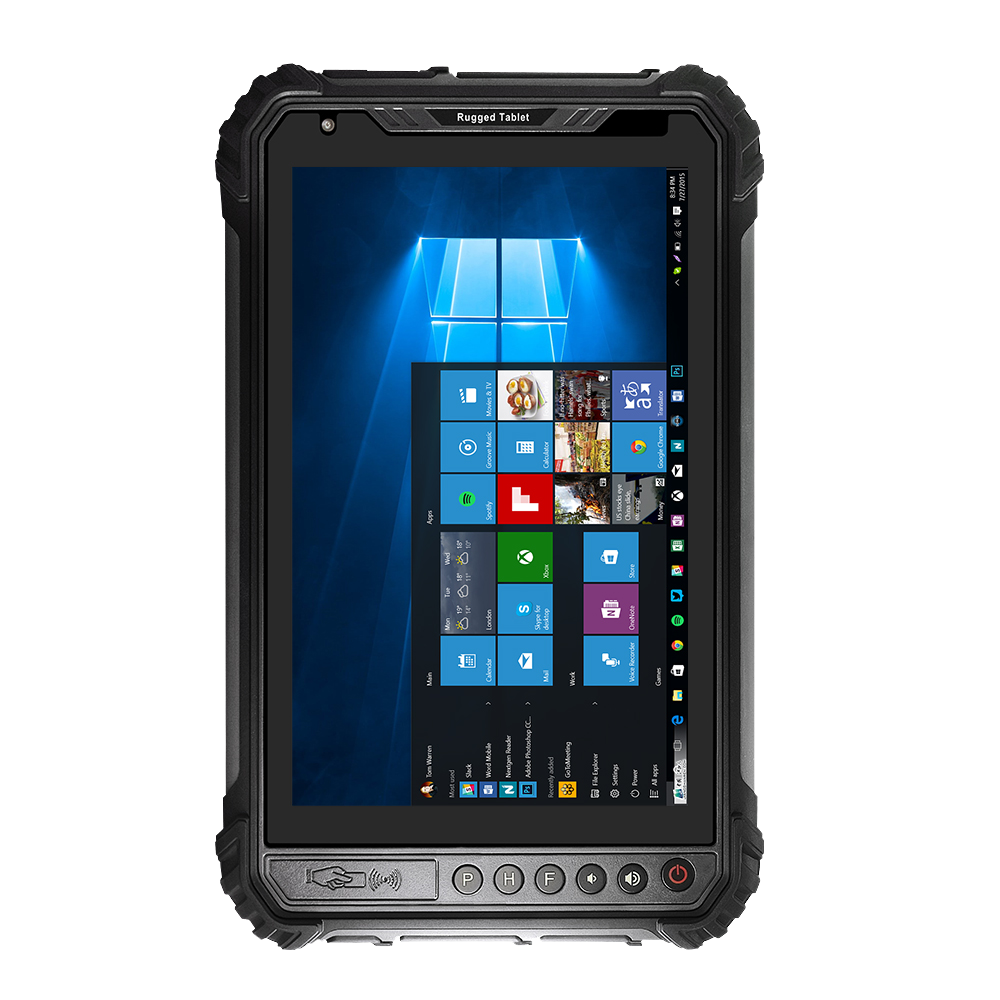

ST9-J Rugged Tablet Overview
The ST9-J Rugged Tablet is a durable, high-performance device powered by Windows 10 Pro (with options for Windows 10 Home and Windows 11 Pro). It's designed for demanding environments and offers a strong set of features:
- CPU: Intel Celeron N5100 Quad-Core, up to 2.80GHz
- GPU: UHD Graphics 24 EUs
- RAM/Storage: 8GB/256GB, optional 4GB/64GB
- Display:
- 8-inch IPS, 1200x1920 resolution, 400 nits max brightness
- Optional 1000 nits display (800x1280)
- 10-point touch, supports stylus
- Camera:
- Front: 5MP
- Rear: 13MP
- Battery: 5000mAh, 7.7V
- Connectivity:
- 4G LTE: FDD-LTE B1/B2/B3/B4/B5/B7/B8/B28, TDD-LTE B40, WCDMA B1/B2/B4/B5/B8, GSM/EDGE B2/B3/B5/B8
- WiFi: 802.11 a/b/g/n/ac, dual-band (2.4G & 5G) – Intel Stone Peak 7265 (WiFi/Bluetooth 2-in-1)
- Bluetooth: 4.2
- GPS: BDS, GPS, GLONASS
- NFC: 13.56 MHz, 1-3cm range (ISO14443 Type A)
- Sensors: Light, acceleration, gravity
- Interfaces:
- HDMI x1
- SIM Card Slot x1
- RS232 x1 (mini-USB)
- Earphone jack x1
- DC 4.0*15mm x1
- USB 3.0 x3
- Pogo pins for USB 2.0 and RS232
- Durability:
- IP65 dust and water resistance
- 1.2-meter drop resistance
- MIL-STD-810G certified
- Optional Features:
- 1D/2D Barcode scanner (NLS-N1, M1, SE2707)
- UHF RFID (American/European standards, external reading distance 3-5m)
- Fingerprint scanner (ZAZ-0A0, 1020A)
- High precision GPS (UM960)
- Accessories: Blue Box, DC Charger (12V 4A), wrist strap, screw
- Optional: Docking station, car holder, car docking
- Temperature:
- Storage: -25°C to 80°C
- Operation: -20°C to 55°C
The ST9-J combines rugged durability with versatile connectivity and performance, making it ideal for industrial, outdoor, and professional use.
