ST11-U Product Overview

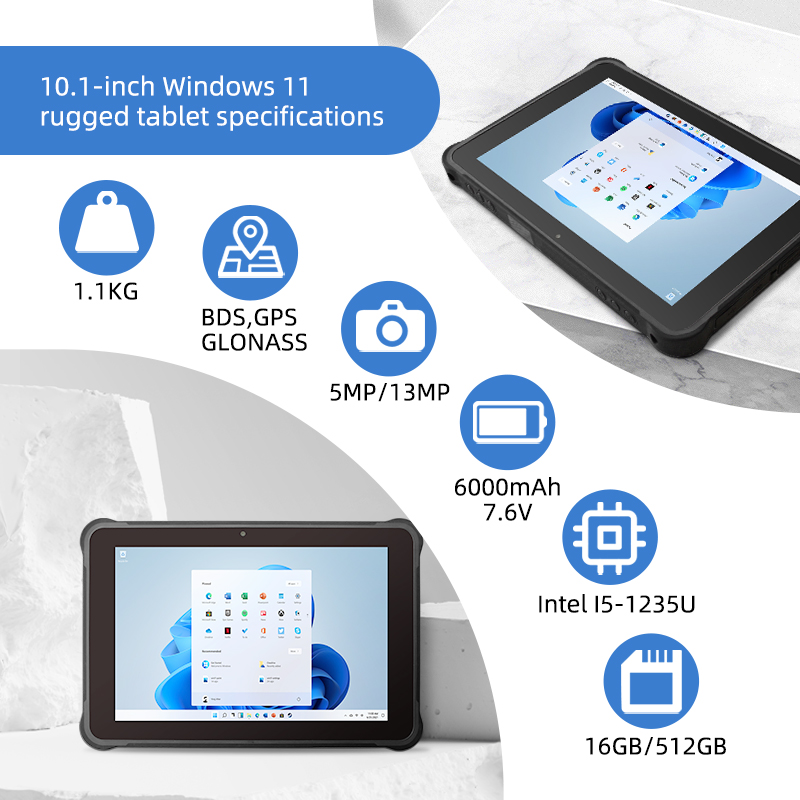

The ST11-U is a rugged, high-performance tablet designed for versatile use in demanding environments. Key specifications include:
- Operating System: Windows 11 Pro (optional Windows 10 Pro / IoT)
- CPU: Intel i5-1235U (10 cores, 12 threads, base 1.3GHz, turbo 4.7GHz) / Optional Intel i7-1255U (base 1.7GHz)
- GPU: Intel® Iris® Xe Graphics 80EU / Optional Intel® Iris® Xe Graphics 96EU (i7 model)
- RAM/Storage:
- i5: 8GB/16GB RAM (up to 64GB), 128GB/256GB/512GB storage
- i7: 16GB/32GB RAM (up to 64GB), 128GB/256GB/512GB storage
- Display: 10.1-inch touchscreen, 1200x1920 resolution, 450 nits, 10-point touch, stylus support
- Camera: Front 5MP, Rear 8MP
- Battery: 6000mAh (45.6Wh), up to 5.5 hours usage time, supports 65W fast charging via Type-C
- Connectivity:
- WWAN: LTE/WCDMA/GSM support with SLM770A module (EC25-AUX in North America)
- GPS: BDS, GPS, GLONASS
- WiFi 6, Bluetooth 5.2
- NFC: 13.56MHz, ISO14443 Type A

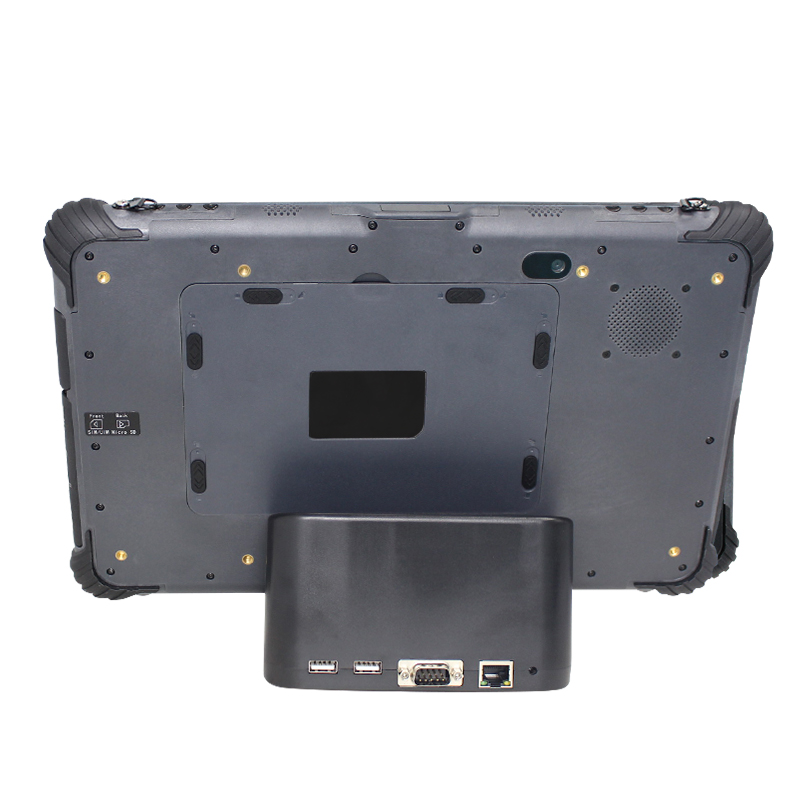

- Ports:
- DC input, HDMI Type-A, USB 3.2 Gen1 (x2 Type-A, x1 Type-C with PD, DP, charging)
- 3.5mm headphone jack, Gigabit Ethernet (RJ45), RS232
- Durability:
- IP54 dust and water resistance
- Drop resistance up to 1.2 meters
- MIL-STD-810G certified
- Temperature: Operates from -20°C to 55°C
Optional Features:
- 1D/2D Barcode scanner (Honeywell N4680)
- UHF RFID reader (American/European standards)
- Fingerprint scanner (AFM60)
- High-precision GPS (UM960)
The ST11-U combines powerful performance, durability, and flexibility, making it ideal for industries requiring robust mobile solutions.
