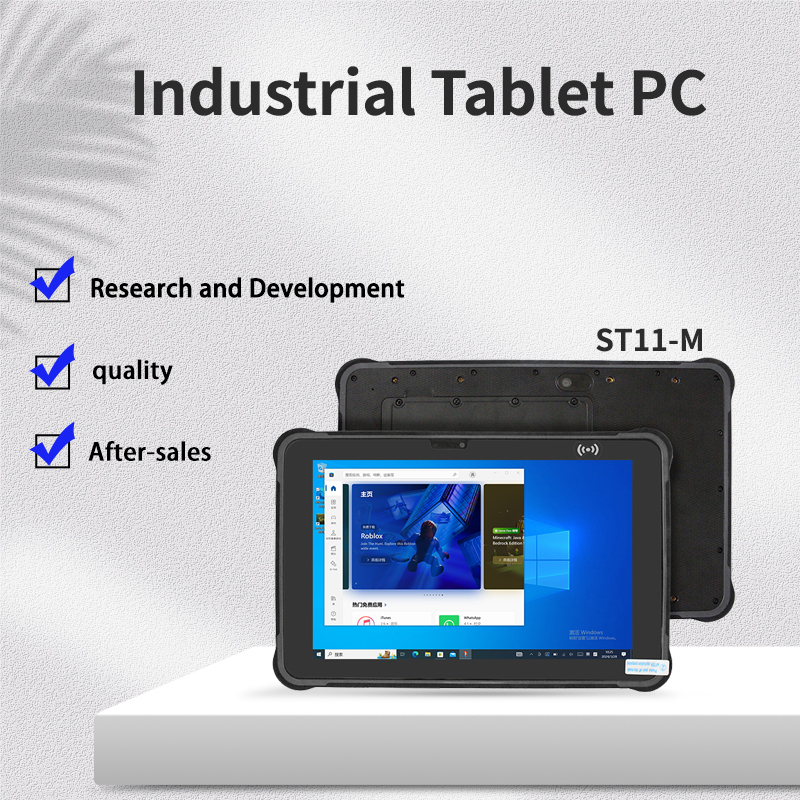

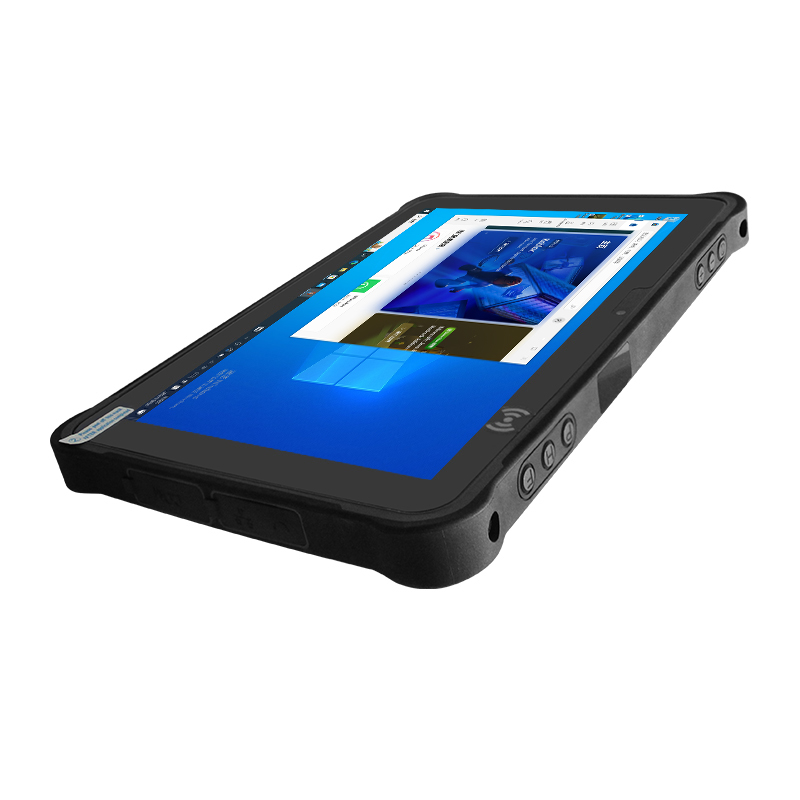

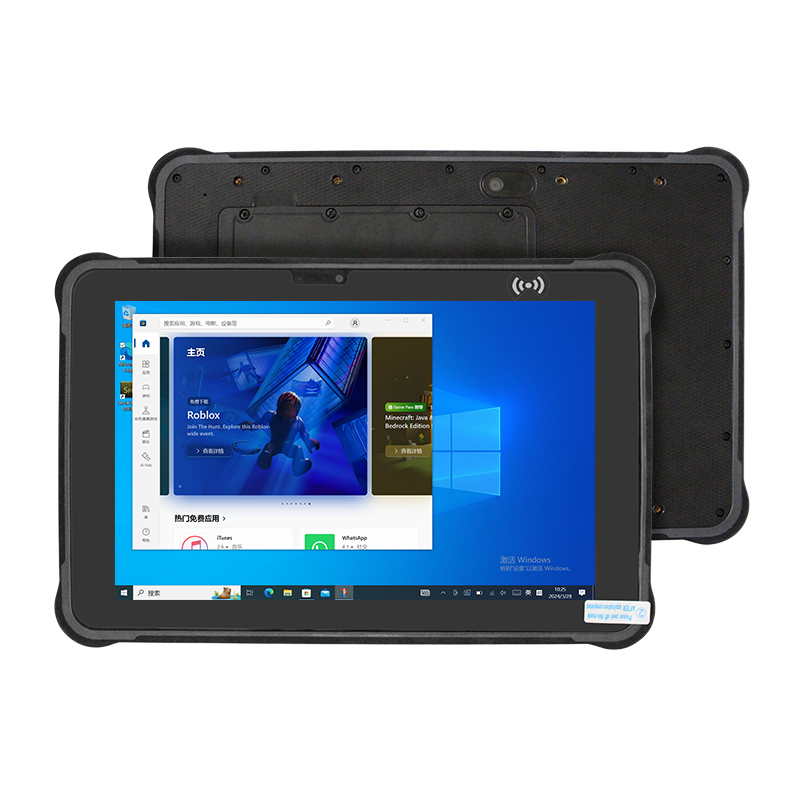

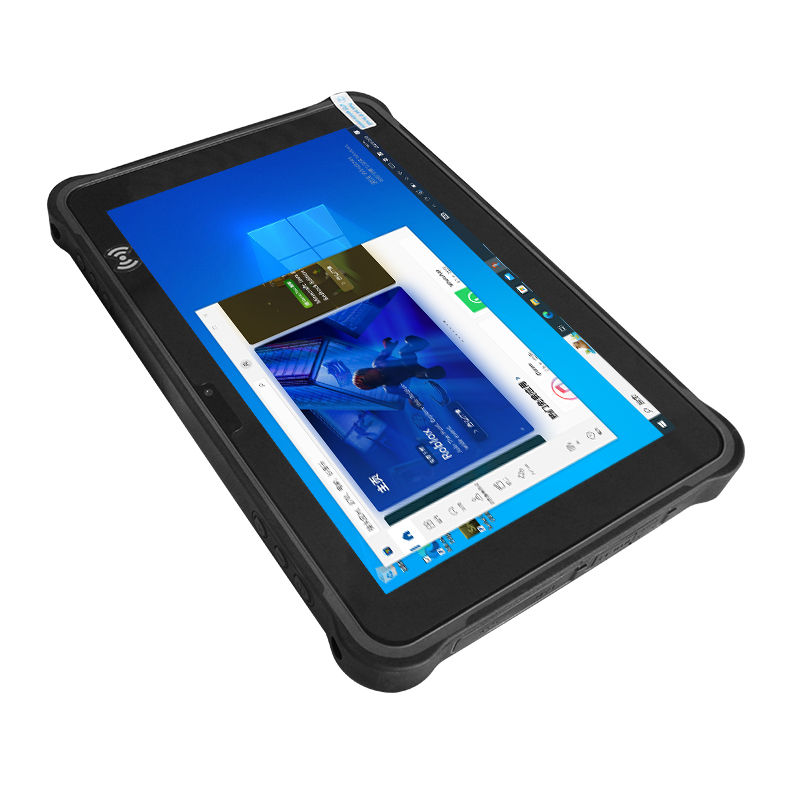

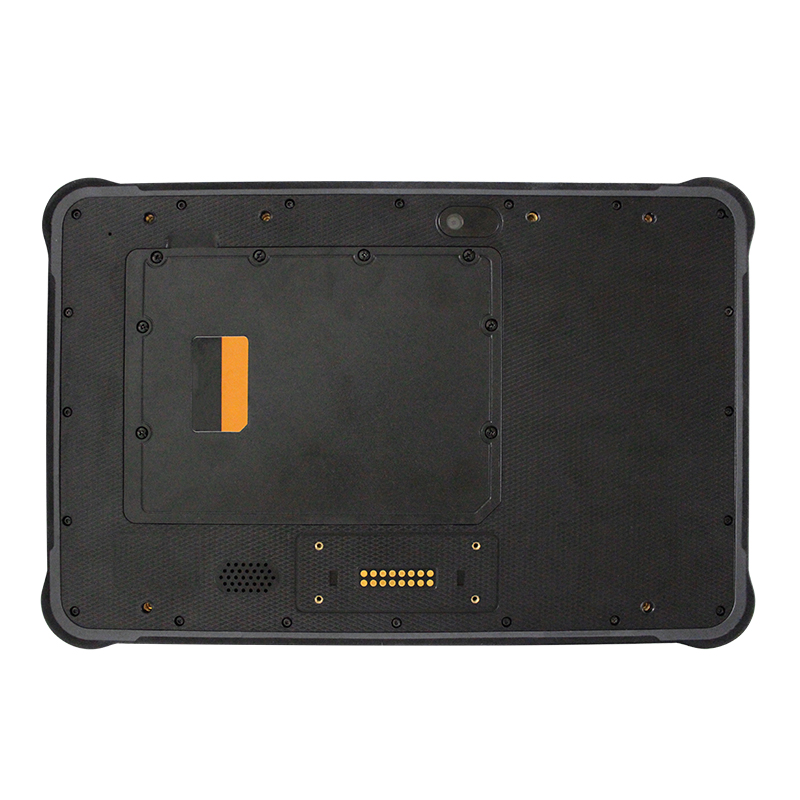

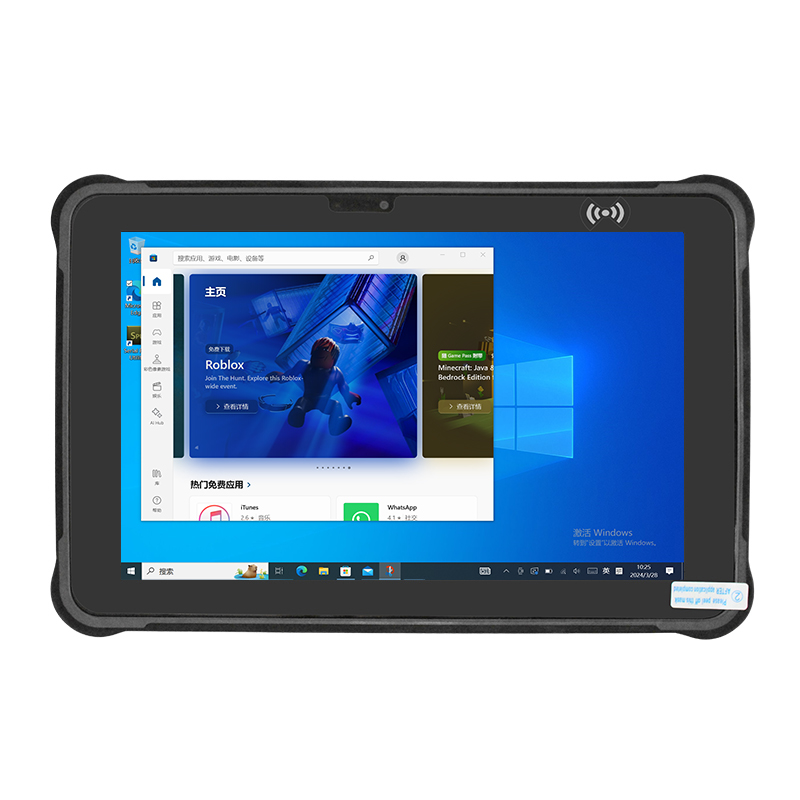

ST11-M Rugged Tablet Overview
The ST11-M Rugged Tablet is a durable, high-performance device designed for demanding environments, featuring a 10.1-inch display and a range of optional features. Key specifications include:
- Operating System: Windows 10 Pro (Windows 10 Home/IoT, Windows 11 Pro, and UbuntuKylin-20.04 optional)
- CPU: Intel i5-8200Y Dual-Core, Quad Threads, 1.30GHz (up to 3.90GHz)
- RAM/Storage:
- 8GB / 256GB (16GB / 512GB optional)
- Display:
- 10.1-inch IPS, 1200x1920 resolution, 430 nits (450 nits max), 1000 nits option available
- 10-point touch, supports stylus
- Camera:
- Front: 5MP
- Rear: 13MP
- Battery:
- 6000mAh, 7.6Vdc (45.6Wh)
- Charging time: ~4 hours
- Usage time: 7.5 hours (50% volume, 60% brightness, playing local 1080p video)
- Standby time: ~4 days
- Connectivity:
- 4G LTE:
- FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B28
- TDD-LTE: B40
- WCDMA: B1/B2/B4/B5/B8
- WiFi: 802.11 a/b/g/n/ac, dual-band (2.4G & 5G), Intel Stone Peak 7265 (WiFi/Bluetooth 2-in-1)
- Bluetooth: 4.2
- GPS: Beidou, GPS, GLONASS
- NFC: 13.56 MHz, 1-3cm range (ISO14443 Type A)
- 4G LTE:
- Sensors: Light sensor, Acceleration sensor, Gravity sensor
- Interfaces:
- HDMI x1
- SIM card slot x1
- TF card slot x1
- Earphone jack x1
- DC 4.0*15mm x1
- USB 3.0 x2
- RJ45 Ethernet x1
- RS232 x1
- Pogo pins for USB and RS232
- Durability:
- IP65 dust and water resistance
- 1.2-meter drop resistance
- MIL-STD-810G certified
- Optional Features:
- 1D/2D Barcode scanner (Honeywell N4680)
- UHF RFID (American/European standards, 3-5m reading distance)
- Fingerprint scanner (AFM60)
- High-precision GPS (UM960)
- Accessories: Blue Box, DC Charger (12V 4A), carry strap, bag & screw, wrist strap, optional docking station, car holder, car docking
- Temperature:
- Storage: -25°C to 80°C
- Operation: -20°C to 55°C
This rugged tablet is perfect for industrial and outdoor applications, offering a balance of performance, durability, and versatile connectivity options.
