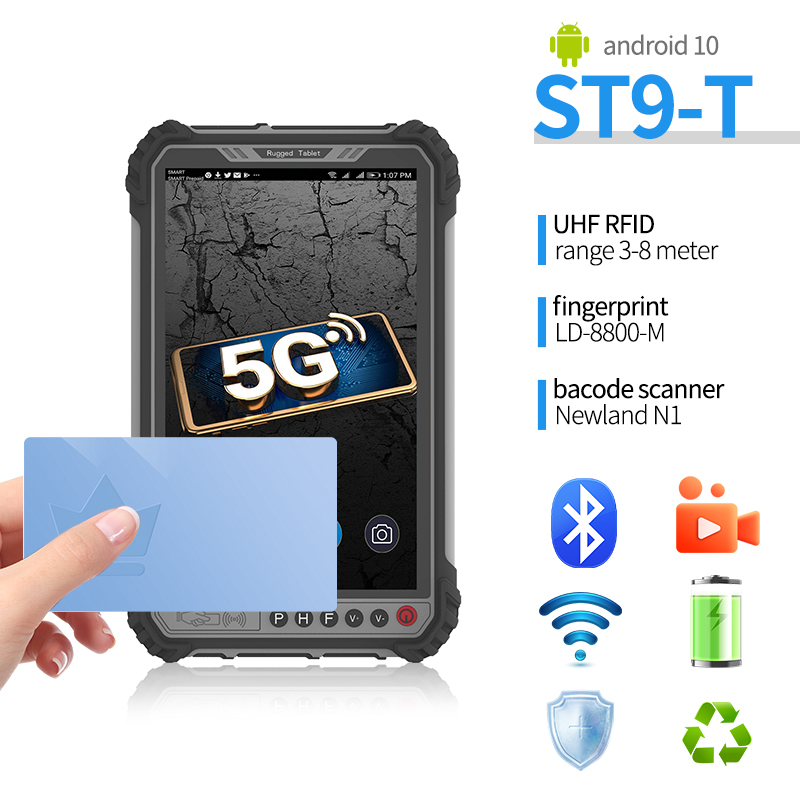

ST9-T Rugged Tablet Overview
The ST9-T Rugged Tablet is a durable, high-performance device powered by Android 10.0, designed for challenging environments with a strong set of features. Key specifications include:
- Operating System: Android 10.0
- CPU: Unisoc T7510 Octa-Core (4x Cortex-A75 @ 2.0GHz, 4x Cortex-A55 @ 1.8GHz)
- GPU: PowerVR GM9446
- RAM/Storage: 8GB / 256GB
- Display:
- 8-inch IPS, 1200x1920 resolution
- Brightness: 370 nits (typical), 390 nits (max)
- 10-point touch, supports stylus
- Camera:
- Front: 5MP
- Rear: 13MP with flash
- Battery: 7800mAh, 3.8V
- Charging time: ~6 hours
- Usage time: 16.5 hours (50% volume, 60% brightness, playing local 1080P video)
- Connectivity:
- 5G: N41/N78/N79
- 4G LTE: B1/2/3/5/7/8/34/38/39/40/41
- 3G WCDMA: B1/2/5/8
- 2G GSM: 850/900/1800/1900
- WiFi: 802.11 a/b/g/n/ac, dual-band (2.4G & 5G)
- Bluetooth: 5.0
- GPS: BDS, GPS, GLONASS
- NFC: 13.56 MHz, 1-3cm range (ISO14443 Type A)
- Sensors: Light, distance, barometric, G-sensor, acceleration, gyroscope
- Interfaces:
- Type-C x1 (OTG support)
- SIM Card Slot x1
- TF Card Slot x1
- Earphone jack x1
- DC 3.5*15mm x1
- USB 2.0 x2
- RS232 x1 (mini-USB)
- Pogo pins for USB and RS232
- Durability:
- IP65 dust and water resistance
- 1.2-meter drop resistance
- MIL-STD-810G certified
- Optional Features:
- 1D/2D Barcode scanner (NLS-N1, M1, SE2707)
- UHF RFID (American/European standards, external reading distance 3-5m)
- Fingerprint scanner (ZAZ-0A0, 1020A)
- Accessories: Blue Box, DC Charger (5V 3A), wrist strap, screw
- Optional: Docking station, car holder, car docking
- Temperature:
- Storage: -25°C to 80°C
- Operation: -20°C to 55°C
The ST9-T combines rugged durability with advanced connectivity options, making it ideal for industrial, outdoor, and demanding environments.
