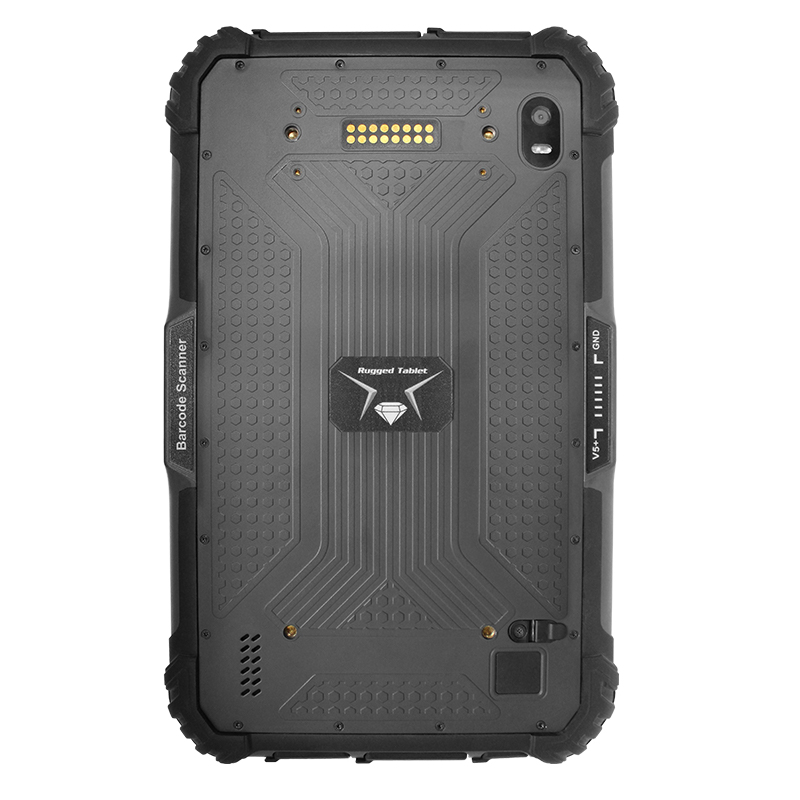

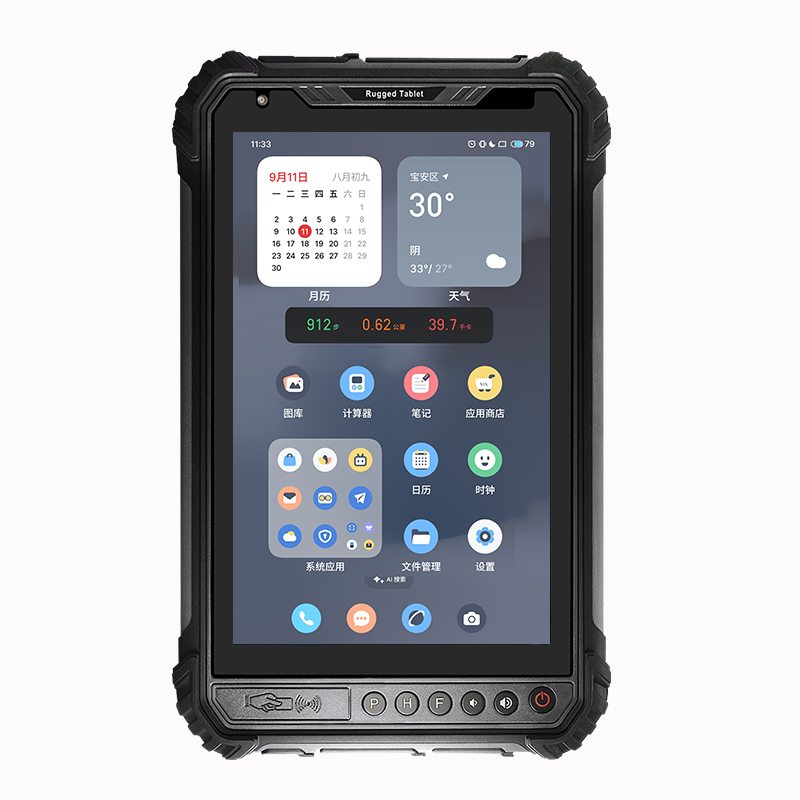

ST9-R2 Rugged Tablet Overview
The ST9-R2 Rugged Tablet is a powerful, durable device running Android 12.0, designed for demanding environments with the following key features:
- CPU: Rockchip RK3588 Octa-Core (Cortex-A76×4 @2.4GHz, Cortex-A55×4 @1.8GHz)
- GPU: ARM Mali G610
- RAM/Storage: 8GB/256GB or 16GB/256GB, optional 8GB/512GB and 16GB/512GB
- Display:
- 8-inch IPS, 1200x1920 resolution, 430 nits (typical)
- Optional 800x1280 resolution with 1000 nits (for bright environments)
- 10-point touch, supports stylus
- Camera:
- Front: 5MP
- Rear: 13MP with flashlight
- Battery: 5000mAh, 7.7V (38.5Wh), supports fast charging
- Connectivity:
- 4G LTE: LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28/B66, LTE-TDD B40, WCDMA B1/B2/B4/B5/B8, GSM 850/900/1800/1900
- Modules: SLM770A (EC25-AUX in North America)
- WiFi: 802.11 a/b/g/n/ac/ax, dual-band (2.4G & 5G), supports WiFi 6 – WiFi/Bluetooth 2-in-1
- Bluetooth: 5.0
- GPS: BDS, GPS, GLONASS
- NFC: 13.56 MHz, 1-3cm range (ISO14443 TYPE A)
- Sensors: Light, magnetic, pressure, G-sensor, distance, acceleration, gyroscope
- Interfaces:
- Type-C x1 (OTG and fast charging)
- SIM Card Slot x1
- TF Card Slot x1
- Earphone jack x1
- DC 4.0*15mm x1
- USB 2.0 x1
- USB 3.0 x2
- RS232 x1 (mini-USB)
- HDMI x1
- Pogo pins for USB 2.0 and RS232
- Durability:
- IP65 dust and water resistance
- 1.2-meter drop resistance
- MIL-STD-810G certified
- Optional Features:
- 1D/2D Barcode scanner (NLS-N1, M1, SE2707)
- UHF RFID (American/European standards, external reading distance 3-5m)
- Fingerprint scanner (ZAZ-0A0, 1020A)
- Accessories: Blue Box, DC Charger (12V 4A), wrist strap, screw
- Optional: Docking station, car holder, car docking
- Size/Weight: 23414416.8mm, 700±50g
- Temperature:
- Storage: -25°C to 80°C
- Operation: -20°C to 55°C
The ST9-R2 is a high-performance, rugged tablet offering advanced connectivity, robust durability, and flexible configuration options, making it ideal for industrial, outdoor, and professional use.
