SMP01-J Product Overview
The SMP01-J is a rugged, versatile computing device featuring 5G connectivity and a powerful Intel Celeron processor, designed for industrial and demanding environments. Key specifications include:
- Operating System: Windows 10 Pro (Ubuntu optional)
- CPU: Intel Celeron N5100, 4 cores, 4 threads, 1.1GHz (up to 2.8GHz)
- GPU: Intel UHD Graphics with 24 Execution Units (Jasper Lake)
- RAM/Storage:
- 4GB/64GB
- Optional: 8GB/256GB
- 5G & LTE:
- 5G NR SA: N1/N28/N41/N78/N79
- LTE-FDD, LTE-TDD, WCDMA support (Module: MeiG SRM821)
- WiFi & Bluetooth:
- WiFi 802.11 a/b/g/n/ac, dual-band (2.4G & 5G), Intel Dual Band Wireless-AC 7265 (WiFi/Bluetooth 2-in-1)
- Bluetooth 4.2
- Sensors: Acceleration sensor
- Size/Weight: 15514052.6mm, 1236g±20g (1228g without 5G module)
- Multimedia:
- Photo Viewer: BMP, JPG, GIF, PNG
- Video: MEPG 1/2/4, H.263/H.264, RMVB, WMV/VC-1, MVC, AVS, MJPEG (up to 1080P)
- Audio: MP3, WMA, WAV, OGG, FLAC, ALAC, APE, AAC, AC-3, DTS (license required)

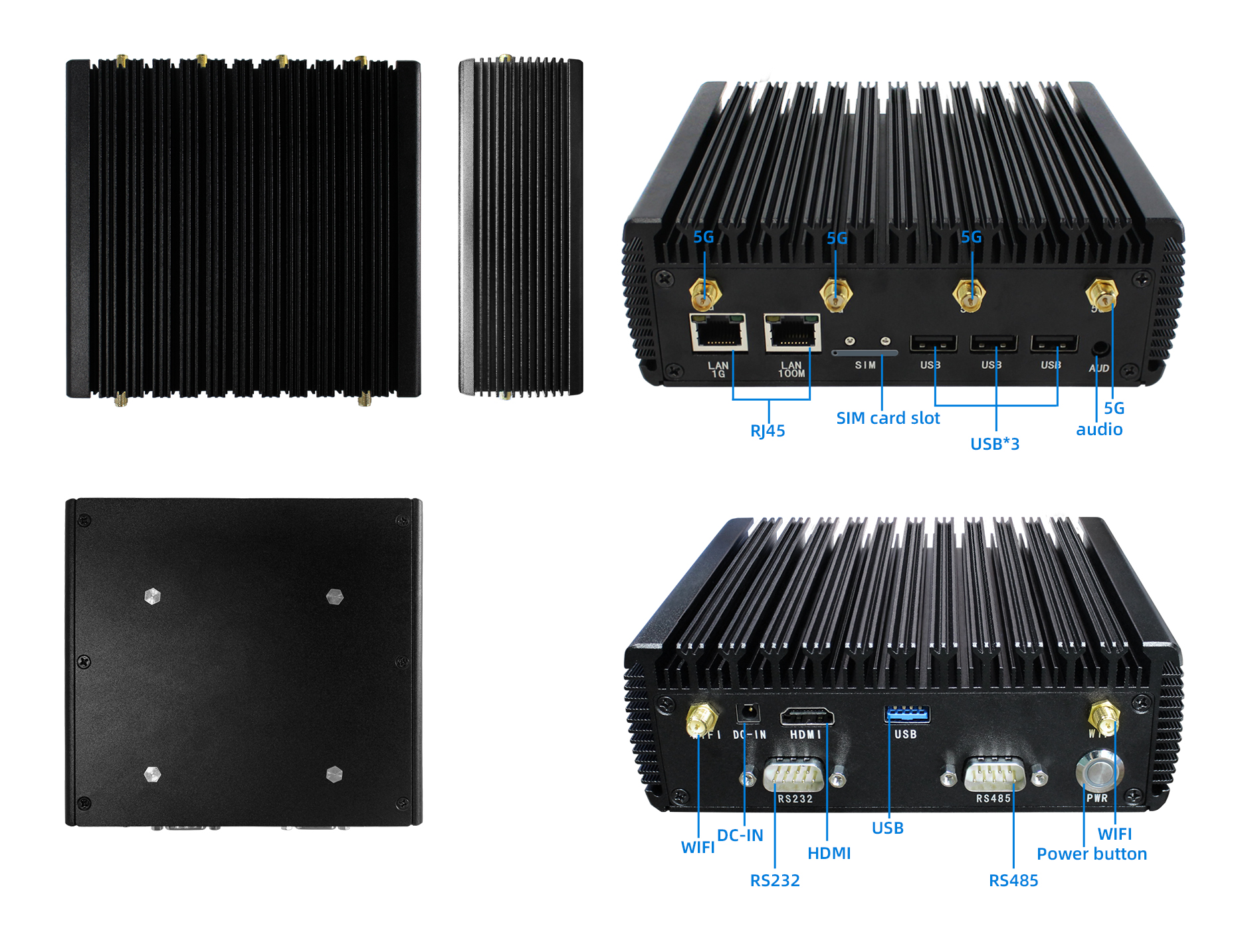

- Interfaces:
- DC 12V 3A, HDMI, USB 3.0 x1, USB 2.0 x3, 3.5mm headphone jack, RJ45 (FE & GE), RS232, RS485, SIM card slot, 5G antenna x4, WiFi antenna x2
- Customizable serial ports: RS232, RS485, RS422, CAN
- Additional Features:
- Power button with LED indicator
- Built-in RTC battery
- Built-in M.2 interface (supports SATA/PCIe SSD)
The SMP01-J combines robust connectivity, expandable storage, and a wide range of I/O options, making it ideal for industrial applications requiring high performance and flexibility.
