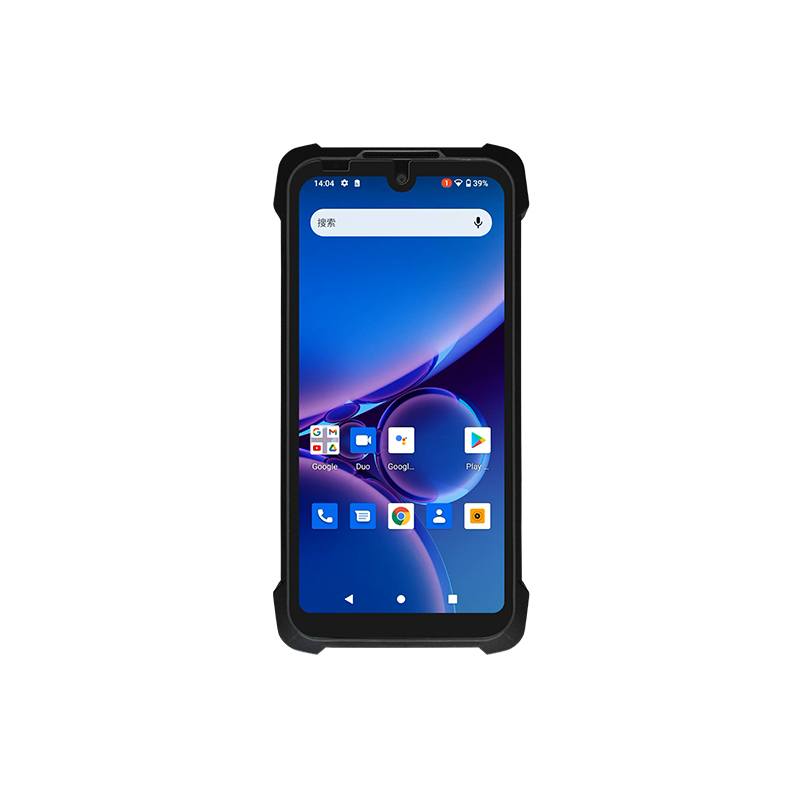

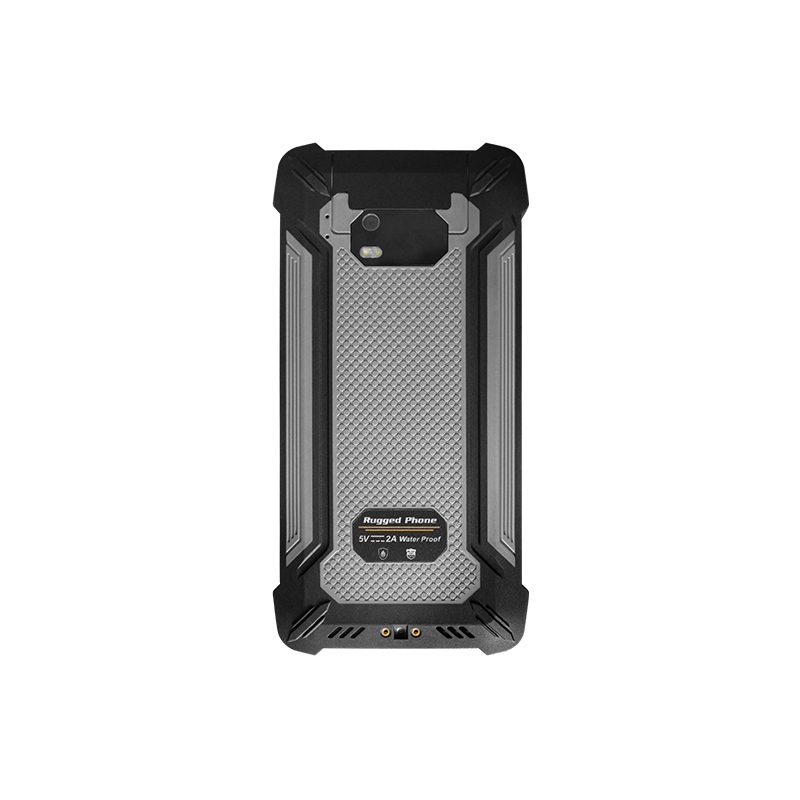

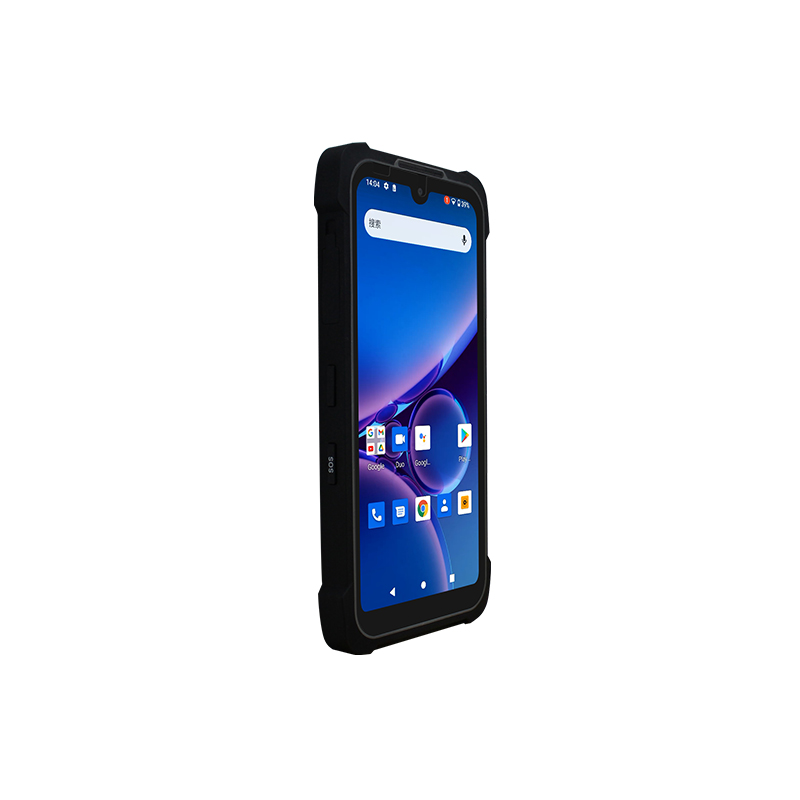

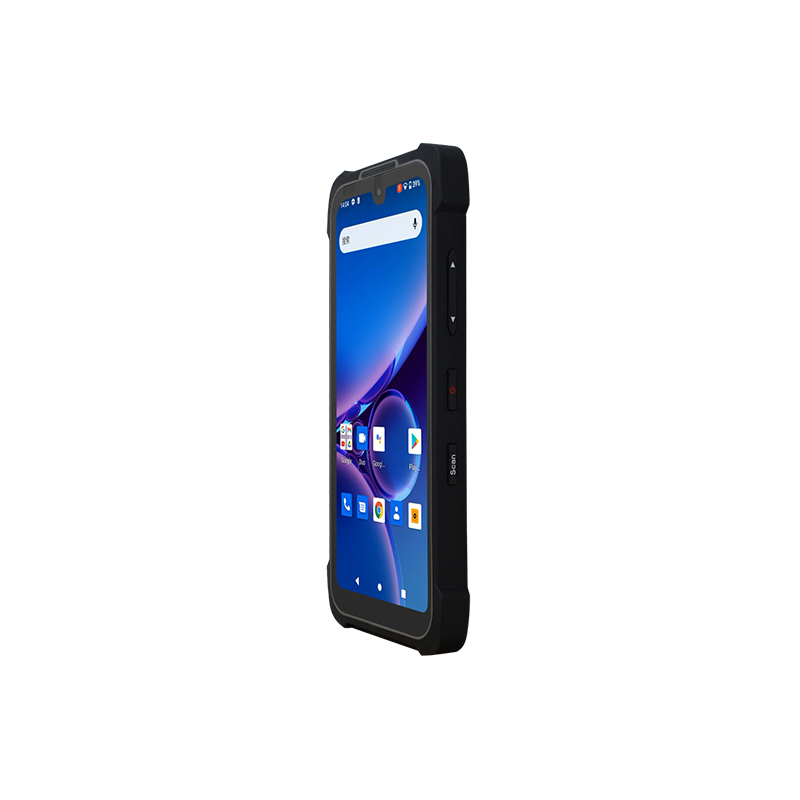

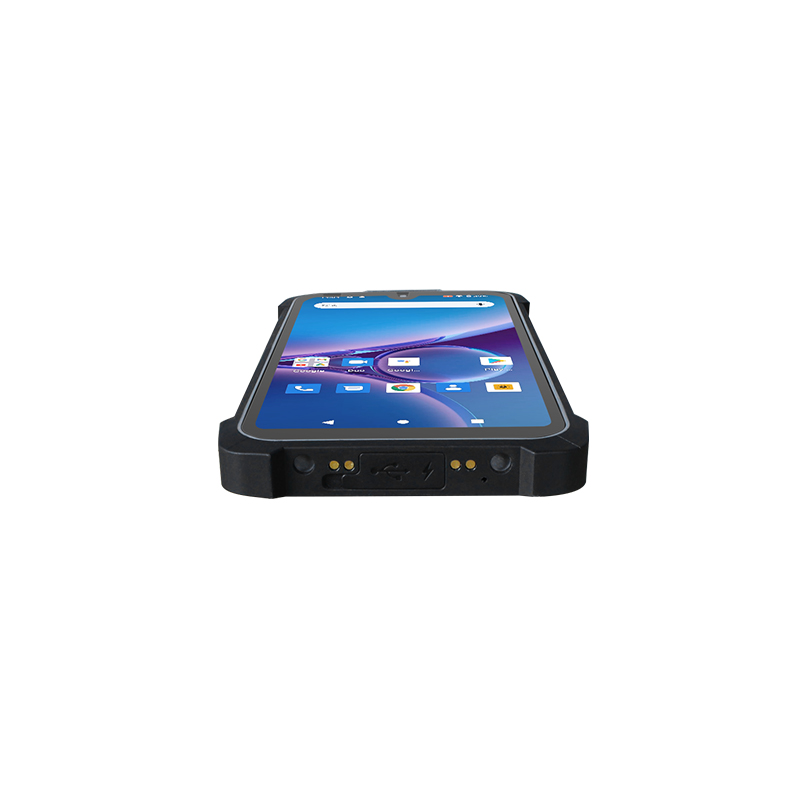

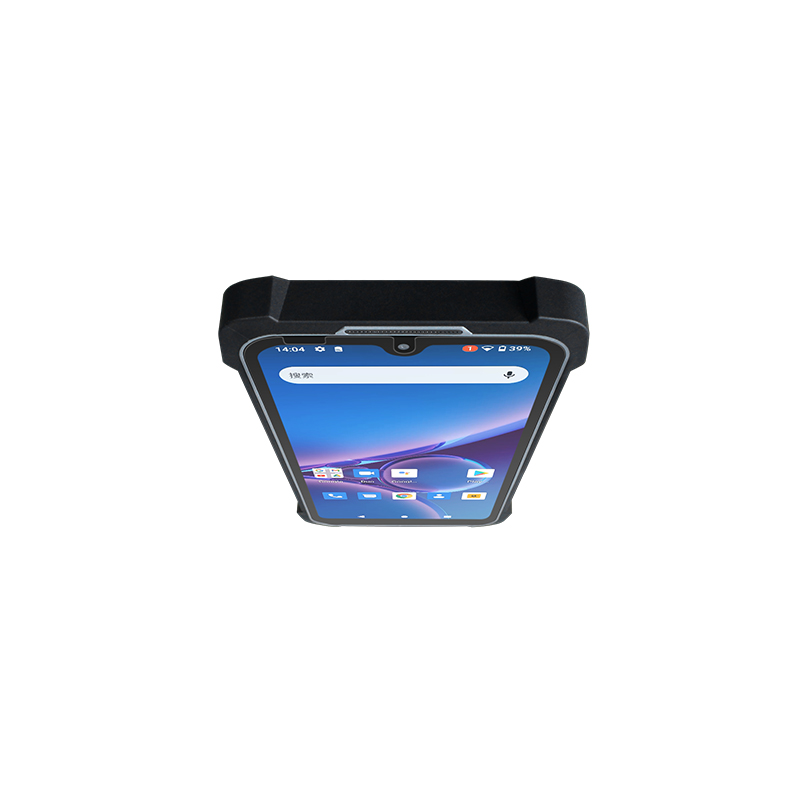

SM5 Android Rugged Terminal Overview
The SM5 Android Rugged Terminal is a durable, high-performance device designed for challenging environments. Key specifications include:
- Operating System: Android 11.0
- CPU: MTK MT6765 Octa-Core (4x Cortex-A53 @1.8GHz, 4x Cortex-A53 @2.3GHz)
- GPU: IMG PowerVR GE8320
- RAM/Storage:
- 4GB/64GB
- Optional: 6GB/128GB
- Display: 5.7-inch, 720x1520, 450 nits brightness
- Touchscreen: 10-point touch, stylus support
- Camera:
- Front: 5MP
- Rear: 13MP with flash
- Battery:
- 4000mAh
- Charging time: 2h 30min
- Usage time: ~14h (50% volume, 60% brightness, playing local 1080P video)
- Connectivity:
- 4G LTE, 3G WCDMA, GSM
- GPS: BDS, GPS, GLONASS
- WiFi: 802.11 a/b/g/n/ac, dual-band (2.4G & 5G)
- Bluetooth: 5.0
- NFC: 13.56 MHz (Model: PN553)
- Sensors: Light, Magnetic, Pressure, G-sensor, Distance, Acceleration, Gyroscope, Motor
- Size/Weight: 155x77.7x13.3mm, 240±20g
- Interfaces:
- Type-C x1, OTG
- Dual SIM card slot or SIM + TF card slot
- Buttons: V+/-, Power, SOS, Scan, Customized Button
- Optional 1D/2D Barcode Scanner (NLS-N1, M1, SE2707)
- Multimedia:
- Photo Viewer: BMP, JPG, GIF, PNG
- Video: MEPG 1/2/4, H.263/H.264, RMVB, WMV/VC-1, MVC, AVS, MJPEG (up to 1080P)
- Audio: MP3, WMA, WAV, OGG, FLAC, ALAC, APE, AAC, AC-3, DTS (license required)
- Durability:
- IP65 dust and water resistance
- 1.5-meter drop resistance
- MIL-STD-810G certified
- Operating Temperature: -25°C to 50°C
- Storage Temperature: -40°C to 60°C
- Accessories: Box, Charger (5V 2A), Thimble
The SM5 is a rugged, versatile device built to withstand harsh conditions while offering robust performance and connectivity options. Ideal for industrial and outdoor use.
