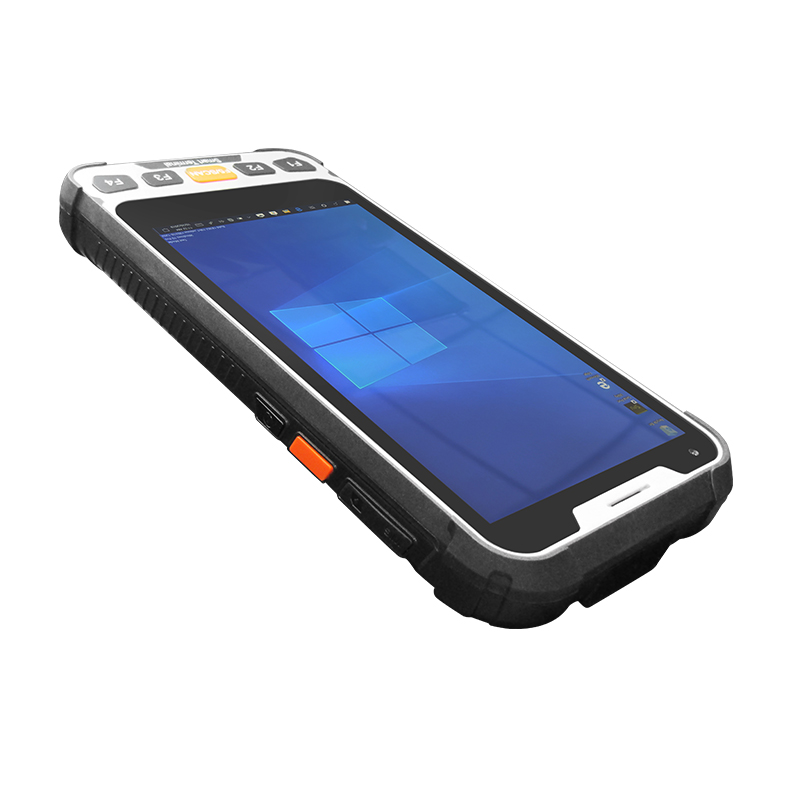

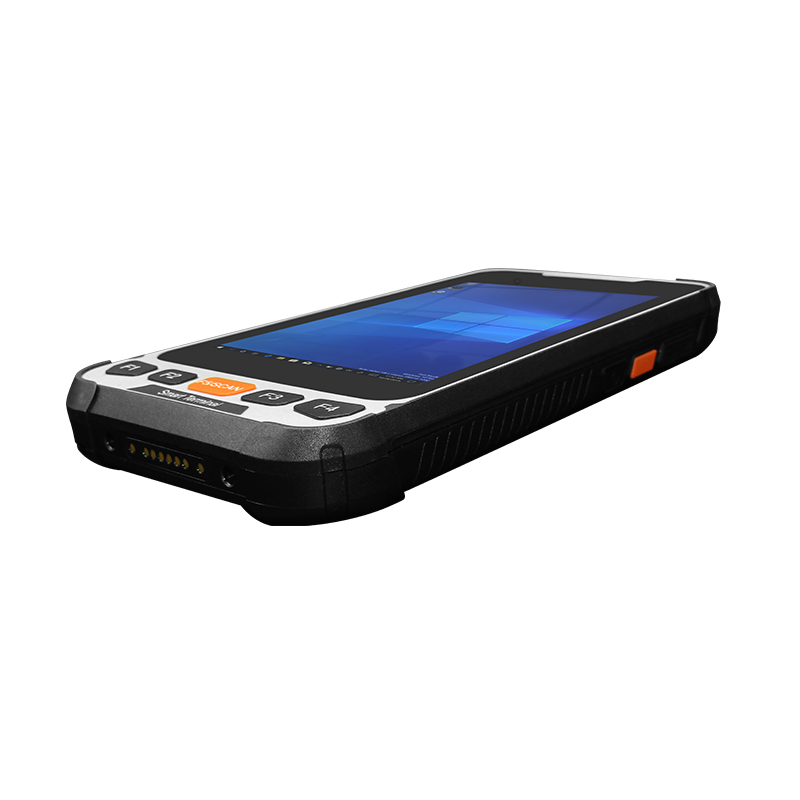

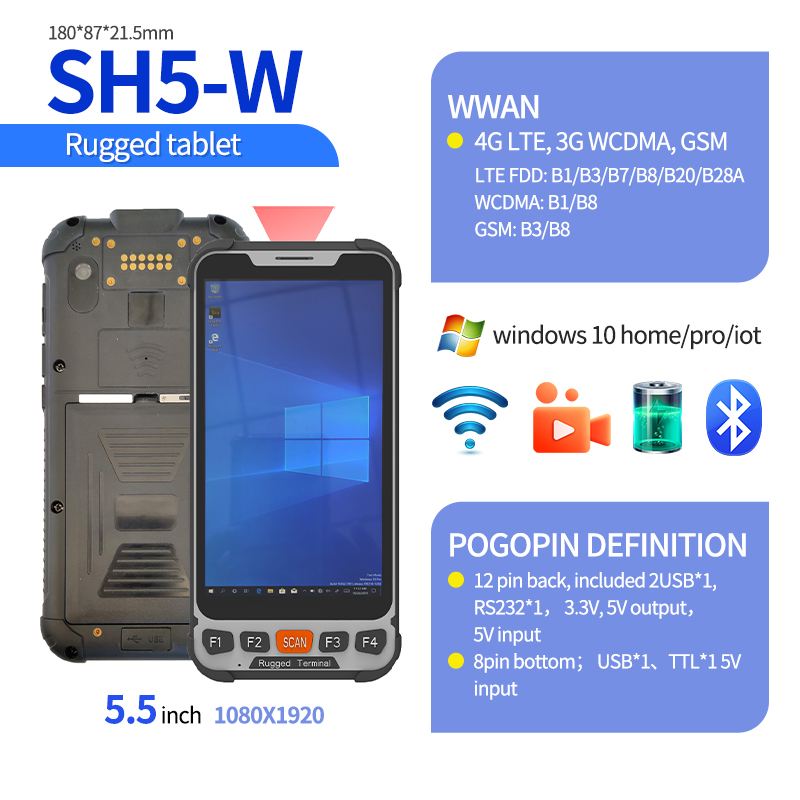

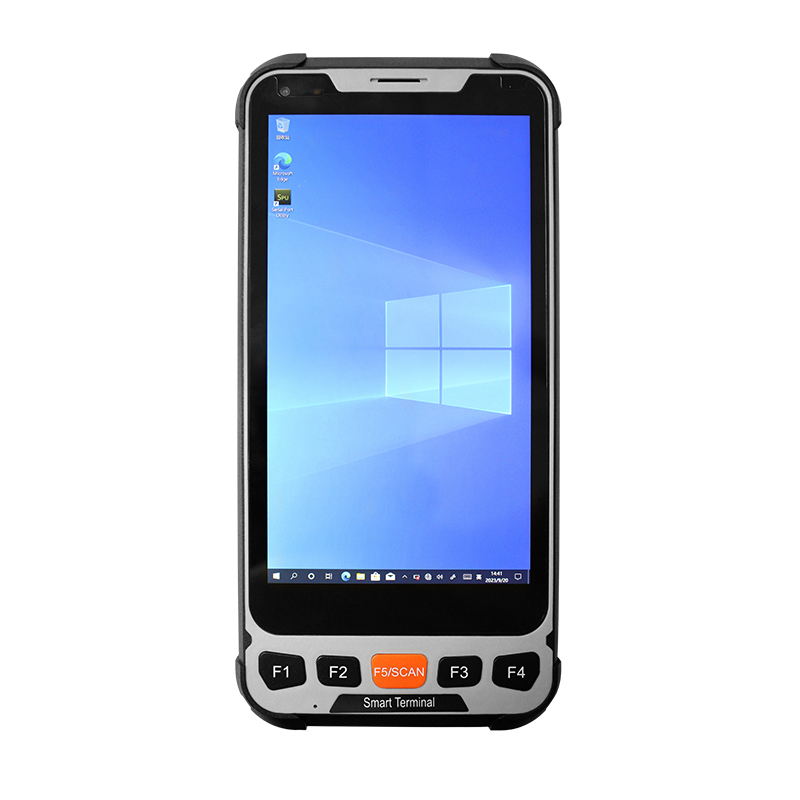

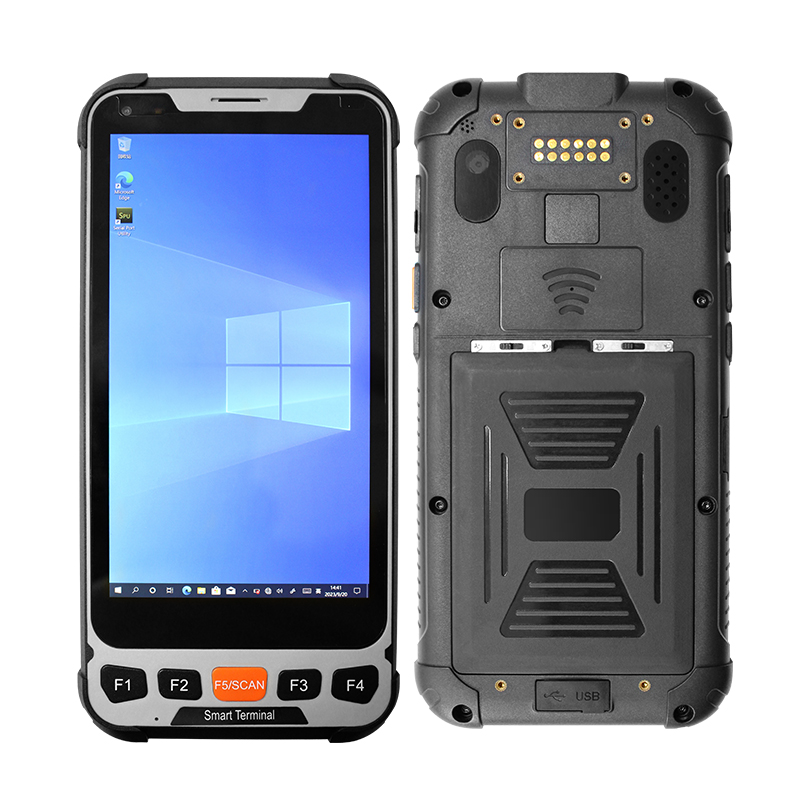

Smallest 5.5-inch Windows Rugged Terminal Overview
The 5.5-inch Windows Rugged Terminal is our company's most compact rugged device, featuring a durable design and robust performance. Ideal for tough environments, its key specifications include:
- Operating System: Windows 10 Pro (Windows 10 Home/IoT optional)
- CPU: Intel Cherry Trail Z8350 Quad-Core, 1.44GHz (Turbo up to 1.92GHz)
- GPU: Intel HD Graphics 400
- RAM/Storage: 4GB/64GB
- Display:
- 5.5-inch IPS screen, 1080x1920, 400 nits brightness
- 5-point touch
- Camera:
- Front: 2MP
- Rear: 5MP
- Battery:
- 5000mAh, 3.8V (19.0Wh)
- Charging time: ~4 hours
- Usage time: 5h 30min (50% volume, 60% brightness, playing local 1080P video)
- Connectivity:
- 4G LTE, 3G WCDMA, GSM
- European Standard: EG91-EX, FDD-LTE Bands B1/B3/B7/B8/B20/B28
- American Standard: EG91-NAX, FDD-LTE Bands B2/B4/B5/B12/B13/B25/B26
- WiFi: 802.11 a/b/g/n/ac, dual-band (2.4G & 5G), Intel Stone Peak 3165 (WiFi/Bluetooth 2-in-1)
- Bluetooth: 4.2
- GPS: BDS, GPS, GLONASS
- NFC: 13.56 MHz, 1-3cm range (ISO14443 Type A, Mifare)
- 4G LTE, 3G WCDMA, GSM
- Sensors: Light sensor
- Size/Weight: 180x87x20mm, 350±20g

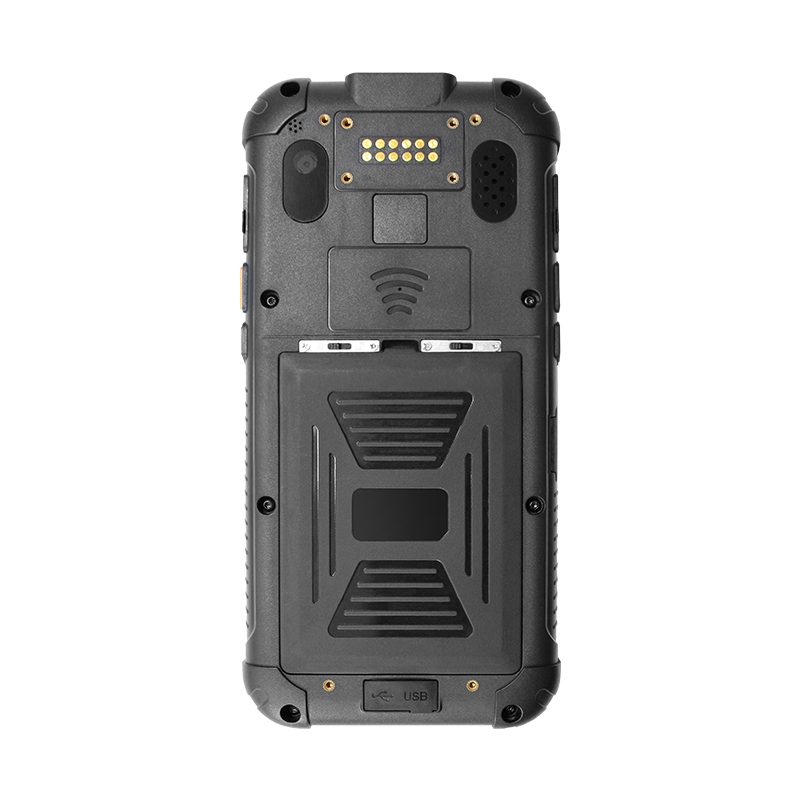

- Interfaces:
- Micro USB x1, OTG
- SIM card slot x1
- TF card slot x1
- USB 3.0 x1
- DC jack x1
- Customizable buttons and optional 1D/2D barcode scanner (Honeywell N4680, Rakinda LV3296, N4315)
- UHF RFID: Optional (American standard 902-928MHz, European standard 865-868MHz, built-in and external reading distances up to 5m)
- Fingerprint: Optional (1020A)
- Durability:
- IP65 dust and water resistance
- 1.2-meter drop resistance
- MIL-STD-810G certified
- Operating Temperature: -20°C to 55°C
- Storage Temperature: -25°C to 80°C
- Accessories: Blue Box, DC Charger (5V 3A), Carry Strap, Screw, optional Docking Station
This compact rugged terminal offers a perfect blend of durability, performance, and versatility, making it suitable for a wide range of industrial and outdoor applications.
