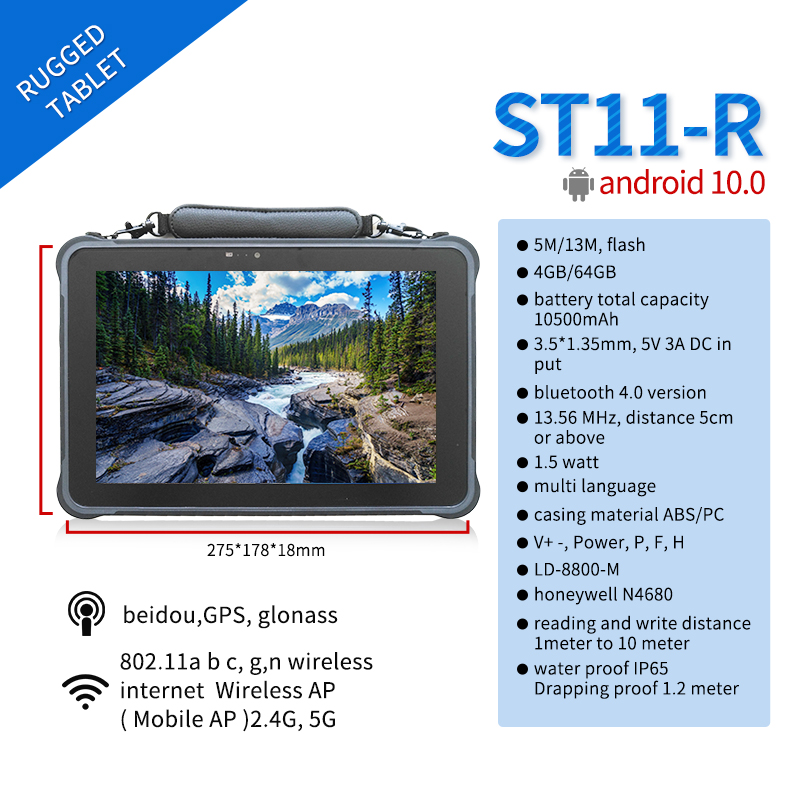

ST11-R Rugged Tablet Overview
The ST11-R Rugged Tablet is a durable, high-performance device designed for demanding environments, featuring a 10.1-inch display and robust connectivity options. Key specifications include:
- Operating System: Android 10.0
- CPU: Rockchip RK3399 Hexa-Core (4x Cortex-A53 @ 1.4GHz, 2x Cortex-A72 @ 1.8GHz)
- GPU: Mali-T860
- RAM/Storage: 4GB / 64GB
- Display:
- 10.1-inch IPS, 1200x1920 resolution, 450 nits
- 10-point touch, supports stylus
- Camera:
- Front: 5MP
- Rear: 13MP with flash
- Battery:
- Main: 12000mAh, 3.8Vdc (45.6Wh)
- Secondary: 2400mAh
- Connectivity:
- 4G LTE:
- TDD-LTE: B38/B39/B40/B41/B44
- FDD-LTE: B1/B2/B3/B5/B7/B8/B12/B20
- 3G WCDMA: B1/B8
- WiFi: 802.11 a/b/g/n/ac, dual-band (2.4G & 5G)
- Bluetooth: 5.0
- GPS: Beidou, GPS, GLONASS
- NFC: 13.56 MHz, 1-3cm range (ISO14443 Type A)
- 4G LTE:
- Sensors: Light, magnetic, pressure, G-sensor, distance, acceleration, gyroscope
- Interfaces:
- Micro USB x1
- SIM card slot x1
- TF card slot x1
- Earphone jack x1
- DC 3.5*12mm x1
- USB 2.0 x1
- RJ45 Ethernet x1
- RS232 x1
- USB 3.0 x1
- HDMI x1
- Pogo pins for USB and RS232
- Durability:
- IP65 dust and water resistance
- 1.2-meter drop resistance
- MIL-STD-810G certified
- Optional Features:
- 1D/2D Barcode scanner (Honeywell N4680)
- Docking station, car holder, car docking
- Accessories: Blue Box, DC Charger (5V 3A), carry strap, screw, wrist strap
- Temperature:
- Storage: -25°C to 80°C
- Operation: -20°C to 55°C
The ST11-R is ideal for industrial and outdoor use, offering a strong combination of performance, durability, and versatile connectivity options.
