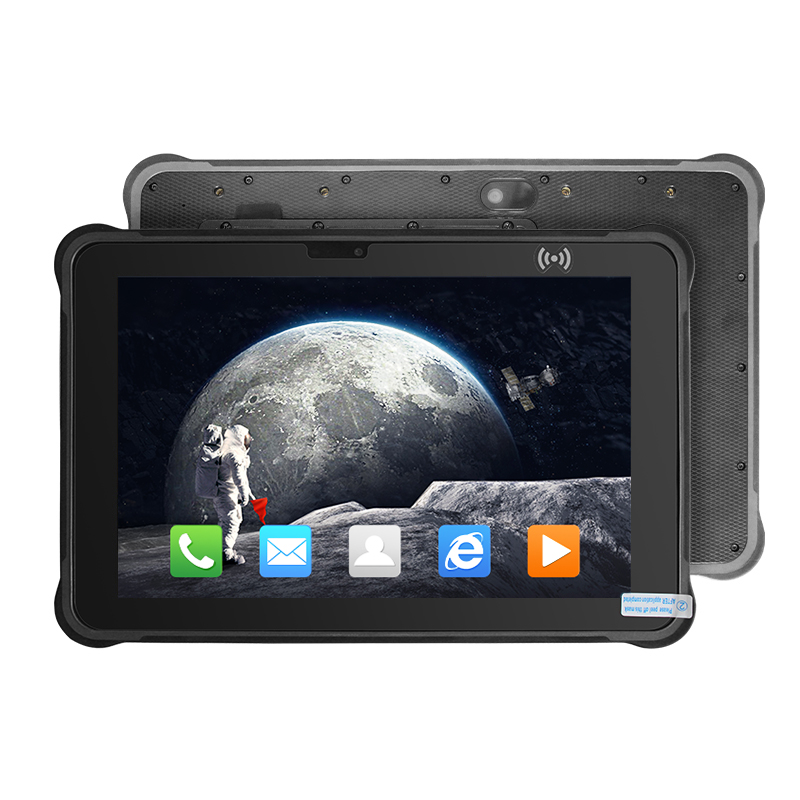

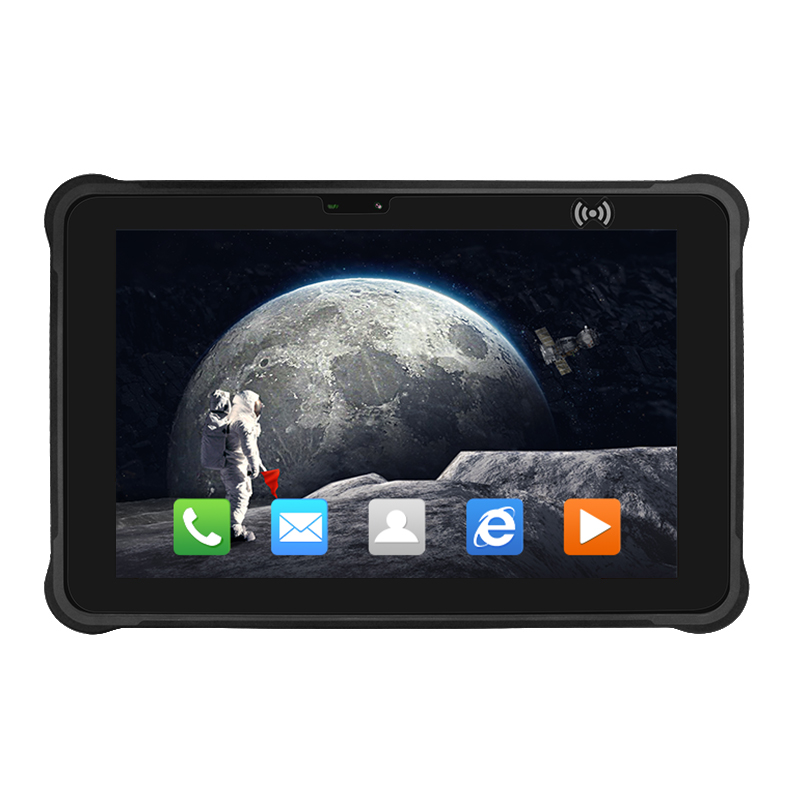

ST11-A7 Rugged Tablet Overview
The ST11-A7 Rugged Tablet is a high-performance, durable device powered by Android 13.0, designed for tough environments with advanced features. Key specifications include:
- Operating System: Android 13.0 with GMS support
- CPU: MTK MT6789 Octa-Core (2x Arm Cortex-A76 @ 2.2GHz, 6x Arm Cortex-A55 @ 2.0GHz)
- GPU: Mali-G57 MC2
- RAM/Storage:
- Standard: 8GB / 256GB
- Optional: 12GB/256GB, 6GB/128GB
- Display:
- 10.1-inch IPS, 1200x1920 resolution, 450 nits
- 10-point touch, supports stylus
- Camera:
- Front: 5MP
- Rear: 13MP with flash
- Battery:
- Main: 12000mAh, 3.8Vdc (45.6Wh)
- Secondary: 2400mAh
- Usage time: Up to 19 hours
- Standby time: Up to 23 days
- Connectivity:
- 4G LTE: FDD-LTE: B1/B2/B3/B5/B7/B8/B12/B17/B20/B28
- TDD-LTE: B34/B38/B39/B40/B41
- 3G WCDMA: B1/B2/B5/B8
- GPS: Beidou, GPS, GLONASS (WiFi/Bluetooth/GPS 3-in-1 module)
- WiFi: 802.11 a/b/g/n/ac, dual-band (2.4G & 5G)
- Bluetooth: 5.0
- NFC: 13.56 MHz, 1-3cm range (ISO14443 Type A)
- Sensors: Light, magnetic, pressure, G-sensor, distance, acceleration, gyroscope
- Interfaces:
- Type-C x1 (OTG support)
- SIM card slot x1
- TF card slot x1
- Earphone jack x1
- DC 3.5*12mm x1
- USB 2.0 x1
- RJ45 Ethernet x1
- RS232 x1

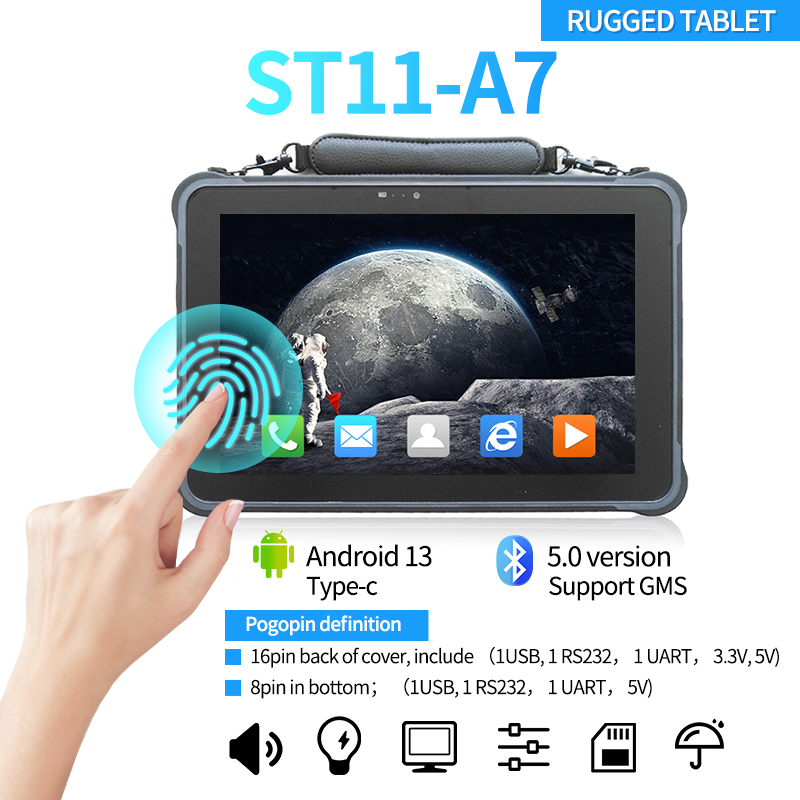

- Pogo pins for USB and RS232
- Durability:
- IP65 dust and water resistance
- 1.2-meter drop resistance
- MIL-STD-810G certified
- Optional Features:
- 1D/2D Barcode scanner (Honeywell N4680)
- Fingerprint scanner (E064N)
- UHF RFID (American/European standards, 1-2m built-in, 3-5m external reading distance)
- Accessories: Blue Box, DC Charger (5V 3A), carry strap, screw, wrist strap
- Optional: Docking station, car holder, car docking
- Temperature:
- Storage: -25°C to 80°C
- Operation: -20°C to 55°C
The ST11-A7 is perfect for industrial and outdoor applications, offering a robust combination of performance, durability, and versatile connectivity options.
