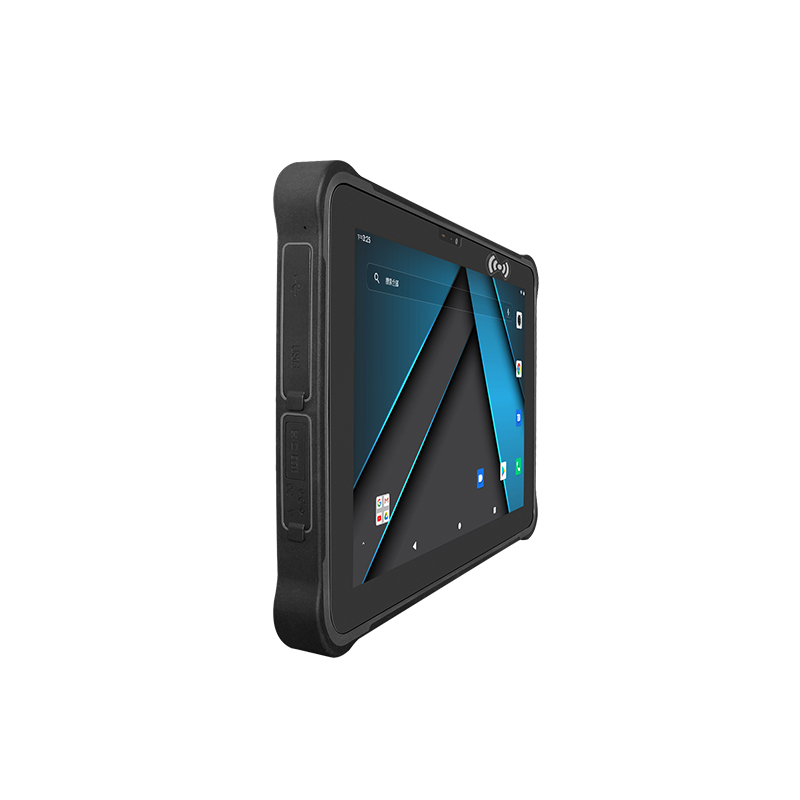

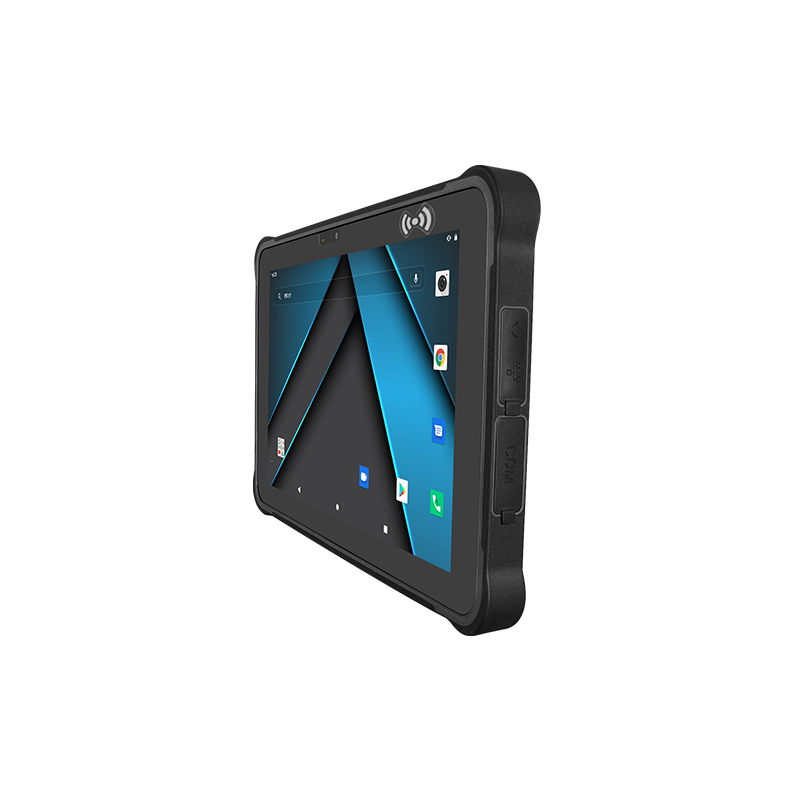

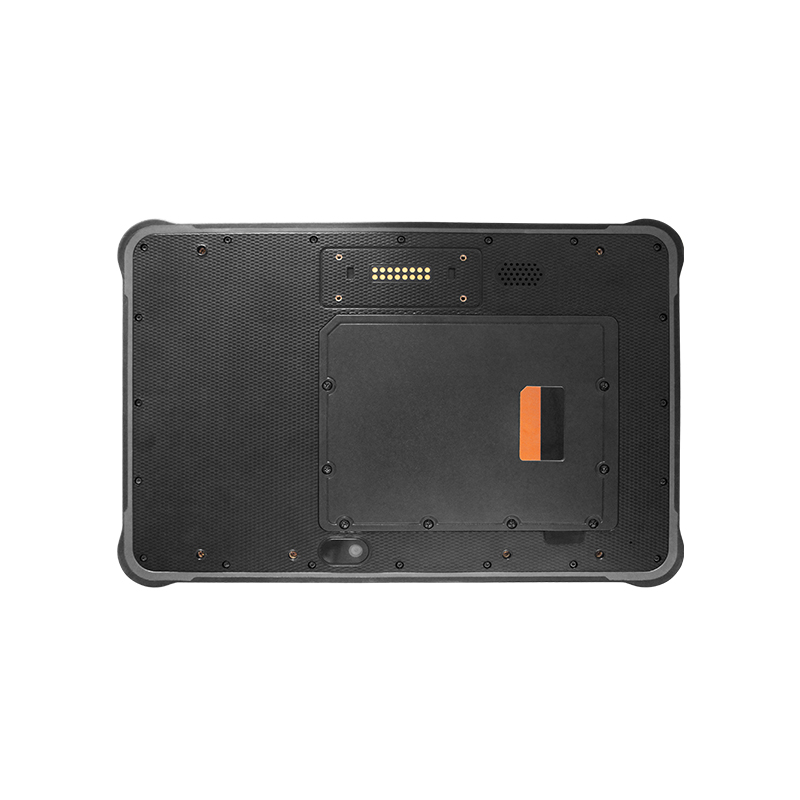

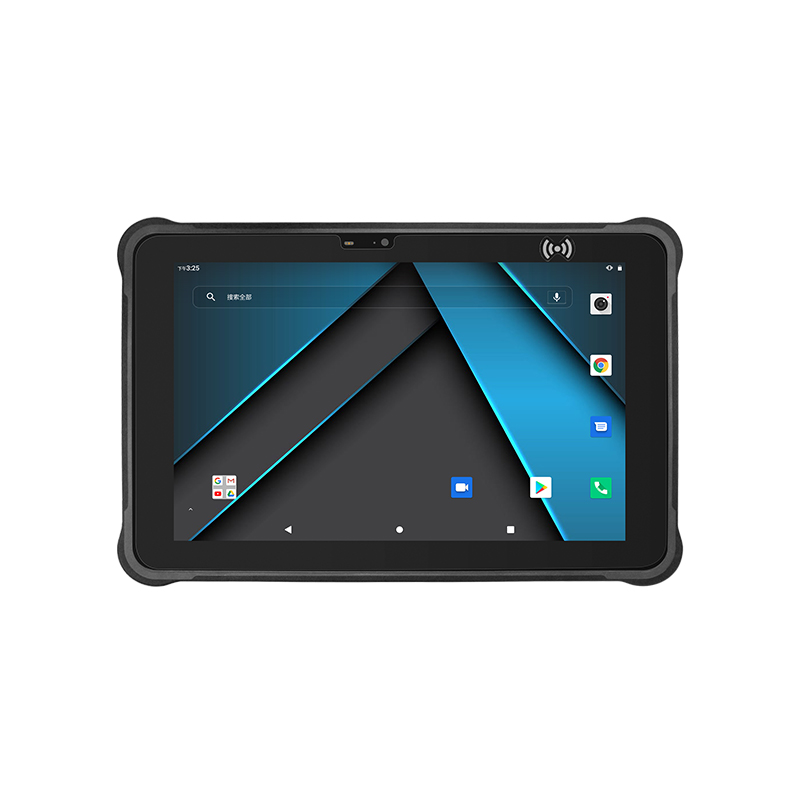

ST11-A5 Rugged Tablet Overview
The ST11-A5 Rugged Tablet is a durable, high-performance device powered by Android 11, designed for challenging environments with a strong set of features. Key specifications include:
- Operating System: Android 11
- CPU: MTK MT8788 Octa-Core (4x Cortex-A53 & 4x Cortex-A73 @ 2.0GHz)
- GPU: ARM Mali-G72 MP3
- RAM/Storage:
- Standard: 4GB / 64GB
- Optional: 8GB / 256GB
- Display:
- 10.1-inch IPS, 1200x1920 resolution, 450 nits (1000 nits optional)
- 10-point touch, supports stylus
- Camera:
- Front: 5MP
- Rear: 13MP with flash
- Battery:
- Main: 12000mAh, 3.8Vdc (45.6Wh)
- Secondary: 2400mAh
- Charging time: ~5 hours
- Usage time: ~24 hours (50% volume, 60% brightness, playing local 1080P video)
- Connectivity:
- 4G LTE: TDD-LTE: B34/B38/B39/B40/B41/B66
- FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28
- 3G WCDMA: B1/B2/B4/B5/B8
- GPS: Beidou, GPS, GLONASS (WiFi/Bluetooth/GPS 3-in-1 module)
- WiFi: 802.11 a/b/g/n/ac, dual-band (2.4G & 5G)
- Bluetooth: 4.2
- NFC: 13.56 MHz, 1-3cm range (ISO/IEC 14443A/B, ISO/IEC 15693)
- Sensors: Light, magnetic, pressure, G-sensor, distance, acceleration, gyroscope
- Interfaces:
- Type-C x1 (OTG support)
- SIM card slot x1
- TF card slot x1
- Earphone jack x1
- DC 3.5*12mm x1
- USB 2.0 x1
- RJ45 Ethernet x1
- RS232 x1
- HDMI x1 (only in 8GB/256GB variant)

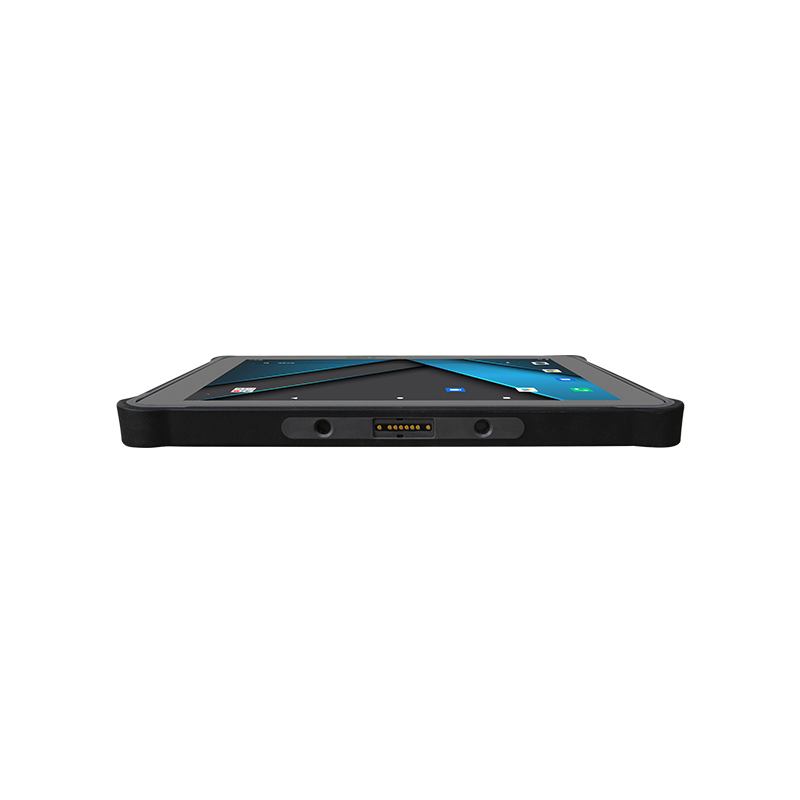

- Pogo pins for USB and RS232
- Durability:
- IP65 dust and water resistance
- 1.2-meter drop resistance
- MIL-STD-810G certified
- Optional Features:
- 1D/2D Barcode scanner (Honeywell N4680, NLS-N1, LV3596)
- UHF RFID (American/European standards, 1-2m built-in, 3-5m external reading distance)
- Fingerprint scanner (AFM60)
- Accessories: Blue Box, DC Charger (5V 3A), carry strap, screw, wrist strap
- Optional: Docking station, car holder, car docking
- Temperature:
- Storage: -25°C to 80°C
- Operation: -20°C to 55°C
The ST11-A5 is ideal for industrial and outdoor use, offering a robust combination of performance, durability, and versatile connectivity options.
